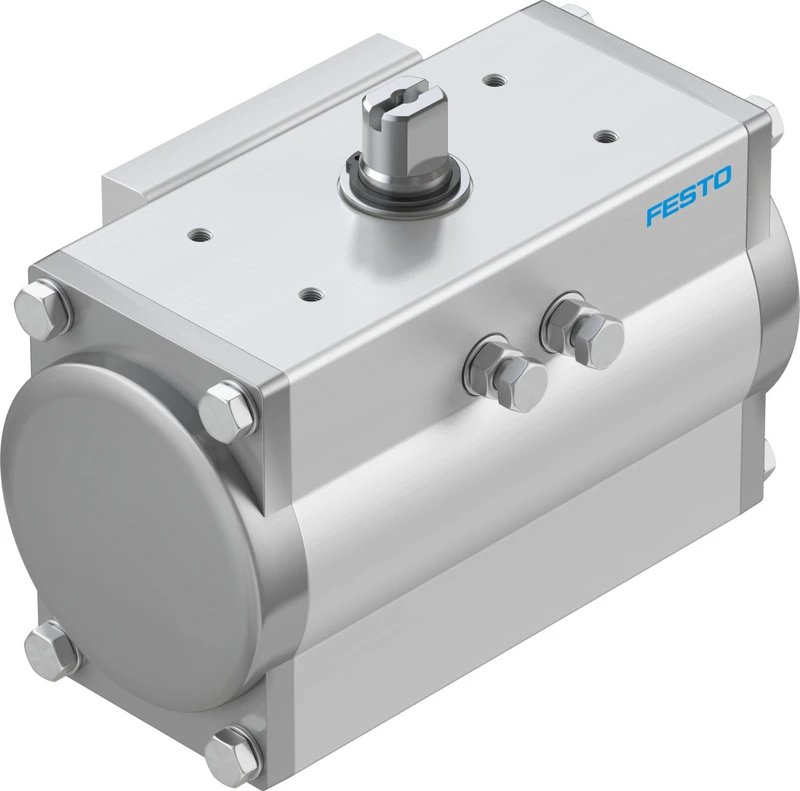

Semi-rotary drive, DFPD-40-RP-90-RD-F0507

Specifications • Quarter turn actuators DFPD • Pneumatic connection G1/8 • Torque at nominal operating pressure and 0° swivel angle 38.3 Nm • Swivel angle 90 deg • Flange hole pattern F0507 • Shaft connection T14 • Size of valve actuator 40 • End-position adjustment range at 0° -5 deg ... 5 deg • End-position adjustment range at nominal swivel angle -5 deg ... 5 deg • Shaft connection depth 16 mm • Fitting connection conforms to standard ISO 5211 • Mounting position optional • Mode of operation Double-acting • Design Rack and pinion
