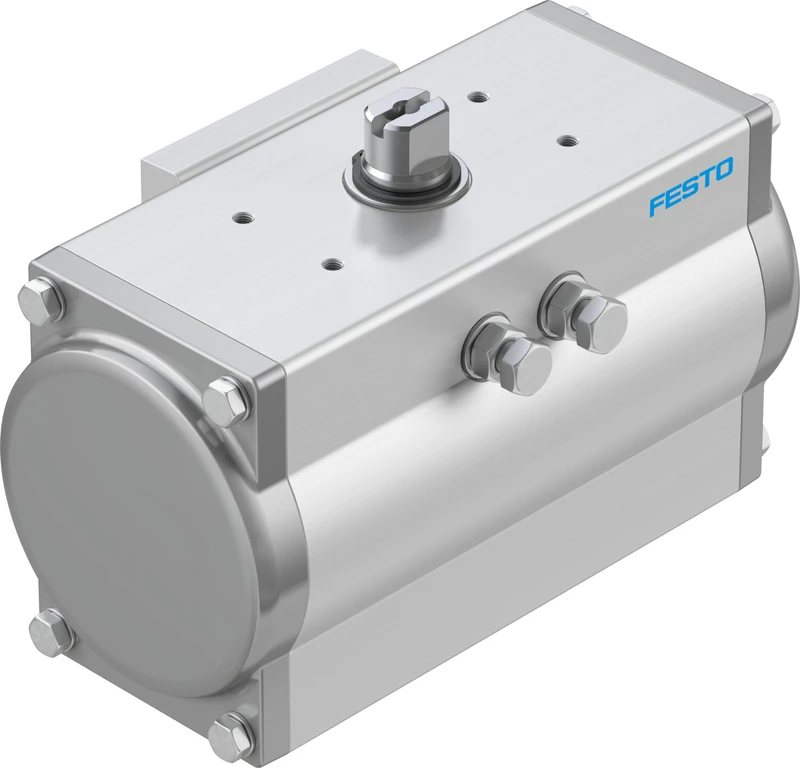

Semi-rotary drive, DFPD-80-RP-90-RD-F0507

Specifications • Quarter turn actuators DFPD • Pneumatic connection G1/8 • Torque at nominal operating pressure and 0° swivel angle 82.4 Nm • Swivel angle 90 deg • Flange hole pattern F0507 • Shaft connection T17 • Size of valve actuator 80 • End-position adjustment range at 0° -5 deg ... 5 deg • End-position adjustment range at nominal swivel angle -5 deg ... 5 deg • Shaft connection depth 19 mm • Fitting connection conforms to standard ISO 5211 • Mounting position optional • Mode of operation Double-acting • Design Rack and pinion
