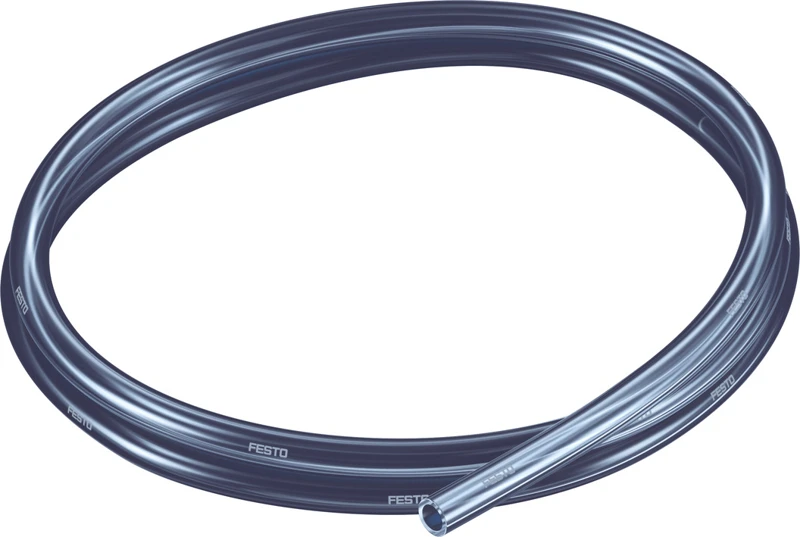

Plastic tubing, PUN-H-8X1,25-TSW
SKU: 8048693
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plastic tubing PUN-H, hydrolysis-resistant
• Outside diameter 8 mm
• Flow-relevant bending radius 37 mm
• Inside diameter 5.7 mm
• Min. bending radius 21 mm
• Instructions on use TPE-U Ether based
• Tubing characteristics Suitable for energy chains
• Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 6 bar
• Operating pressure complete temperature range -13.775 psi ... 87 psi
• Temperature-dependent operating pressure -0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure -0.95 bar ... 10 bar
• Temperature-dependent operating pressure -13.775 psi ... 145 psi
Buy currently uses Select Automation shop pricing and checkout.
Plastic tubing PUN-H, hydrolysis-resistant
• Extremely flexible polyurethane tubing
• Suitable for use with energy chains
• Operating media: compressed air, vacuum, water
• PUN-H-T: transparent version for greater safety, e.g. solid particles can be detected immediately
• Food-safe (see www.festo.com/sp/pun-h > "Certificates" tab) and FDA-compliant
• Individual configuration for plastic tubing
