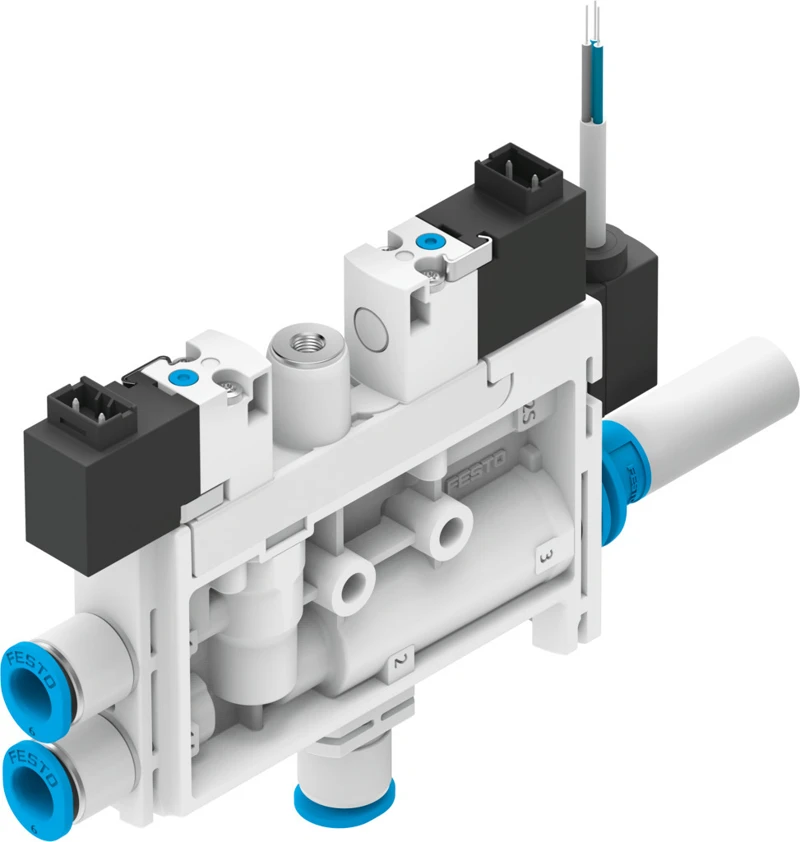

Vacuum generator, OVEL-7-H-15-PQ-VQ4-UA-C-A-V1V-H3
SKU: 8049050
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators OVEL
• Nominal size, Laval nozzle 0.7 mm
• Grid dimension 15 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic High vacuum, Standard
• Grade of filtration 40 µm
• Manual override Non-detenting
• Integrated function Electric ejector pulse, Flow control, Pressure transmitter, Electric on-off valve, Filter, Open silencer
• Design T-shape
• Max. vacuum 92 %
• Max. suction flow rate against atmosphere 17 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator OVEL
• The small and lightweight OVEL is perfect for extremely dynamic, decentralised handling applications in the electronics industry.
• Commissioning and parameterisation are easy thanks to IO-Link®.
• Low-cost, compact vacuum generator
• Light weight
• Various performance levels and vacuum types
• Short switching times thanks to integrated solenoid valves
• Quick, precise and safe placement of the workpiece via the ejector pulse
• Easy assembly
• Minimal installation costs
• Sustainable operation thanks to reduced pressure level
• RA1 version with robot connection, enables fast integration in lightweight robot environments
