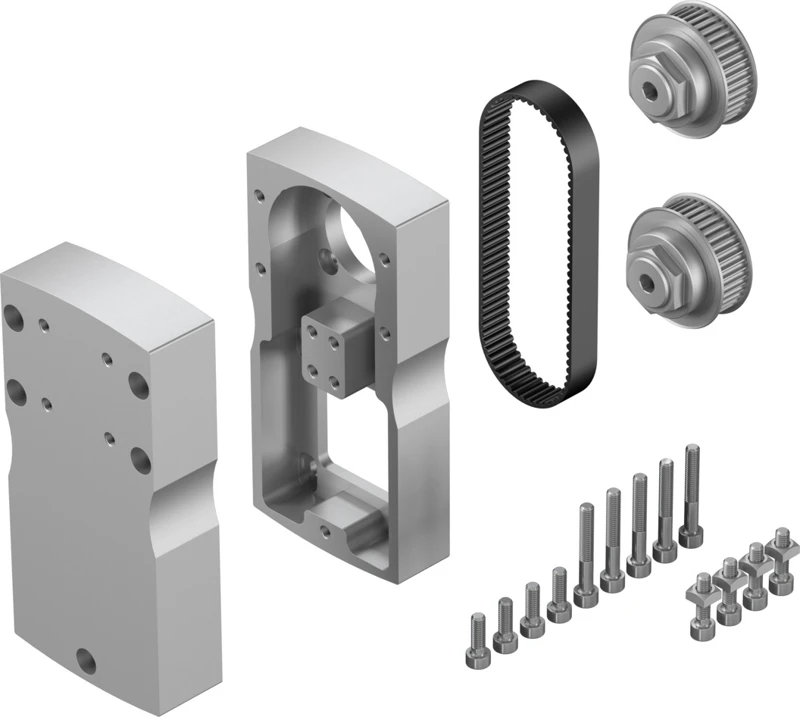

Parallel kit, EAMM-U-70-S48-70AB-96

Specifications • Parallel kits EAMM-U-...-D/S • Permissible axis/motor combinations with ball screw (spindle) axis ELGA-BS • Permissible axis/motor combinations with ball screw (spindle) axis EGC-BS • Permissible axis/motor combinations with ball screw (spindle) axis with heavy-duty guide EGC-HD-BS • Size 70 • Mounting position optional • Max. rotational speed 5000 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 118 kgmm² • Frictional torque independent of load 0.18 Nm • Transmittable torque 7 Nm • Product weight 1800 g • Interface code, actuator S48 • Interface code, motor in 70AB • Note on materials RoHS-compliant
