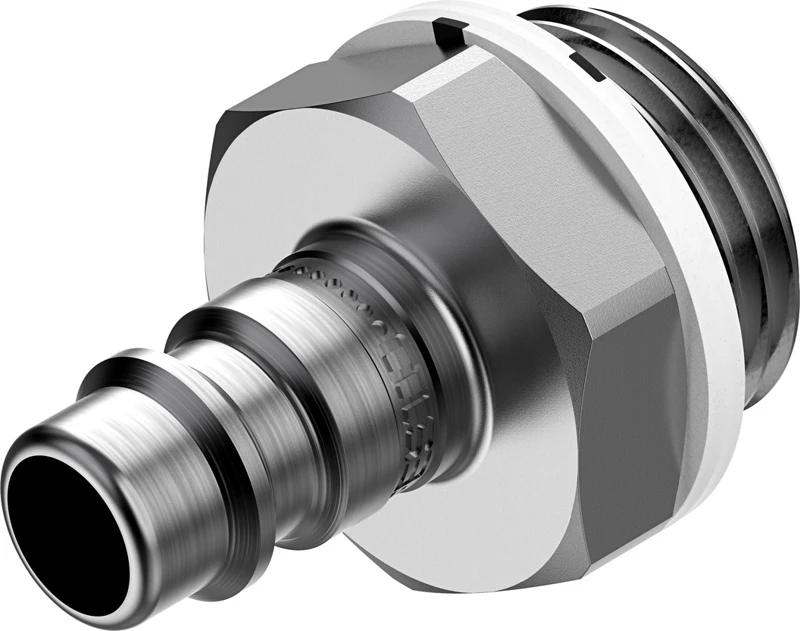

Quick coupling plug, NPHS-S6-M-G12

Specifications • Quick coupling socket/plug NPHS • Nominal size 7.85 mm • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa • Operating pressure complete temperature range -0.95 bar ... 12 bar • Operating pressure complete temperature range -13.775 psi ... 174 psi • Standard nominal flow rate 1002 l/min ... 2000 l/min • Nominal flow rate standardised according to ISO 8778 1086.2 l/min ... 2168 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C
