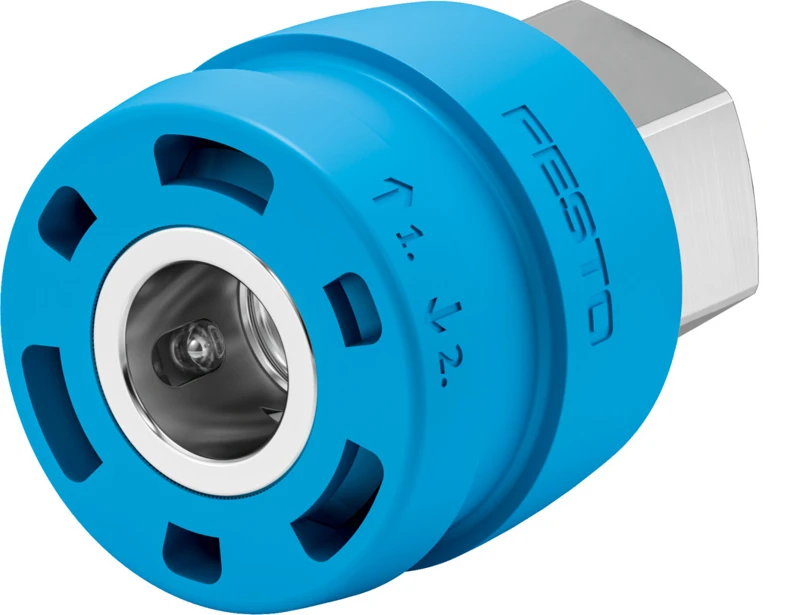

Quick coupling socket, NPHS-D6-P-G38F

Specifications • Coupling socket, quick coupling plug NPHS • Nominal size 10.5 mm • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa • Operating pressure complete temperature range -0.95 bar ... 12 bar • Operating pressure complete temperature range -13.775 psi ... 174 psi • Standard nominal flow rate (standardised to DIN 1343) 1203 l/min ... 2083 l/min • Nominal flow rate standardised according to ISO 8778 1304.1 l/min ... 2258 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Product weight 114 g • Pneumatic connection, port 1 Female thread G3/8
