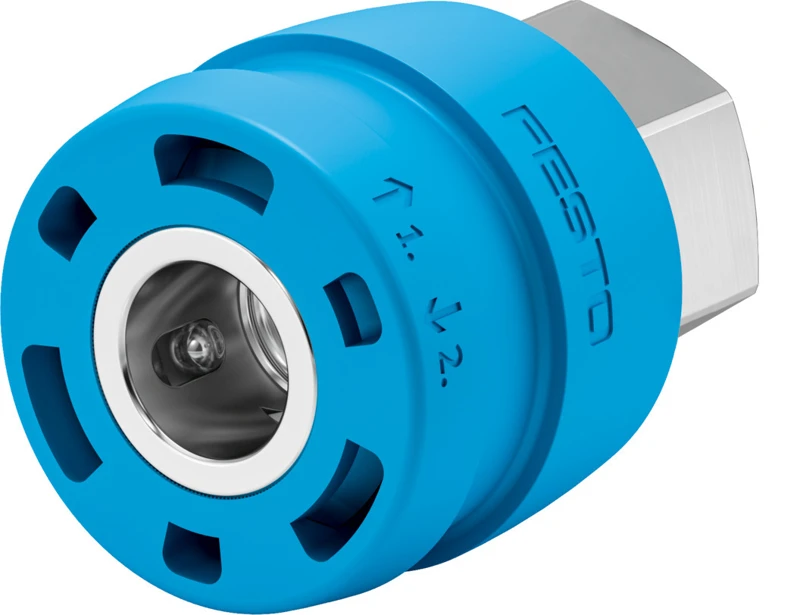

Quick coupling socket, NPHS-D6-P-G12F

Specifications • Coupling socket, quick coupling plug NPHS • Nominal size 10.5 mm • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa • Operating pressure complete temperature range -0.95 bar ... 12 bar • Operating pressure complete temperature range -13.775 psi ... 174 psi • Standard nominal flow rate (standardised to DIN 1343) 1008 l/min ... 2050 l/min • Nominal flow rate standardised according to ISO 8778 1092.7 l/min ... 2222.2 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Product weight 122 g • Pneumatic connection, port 1 Female thread G1/2
