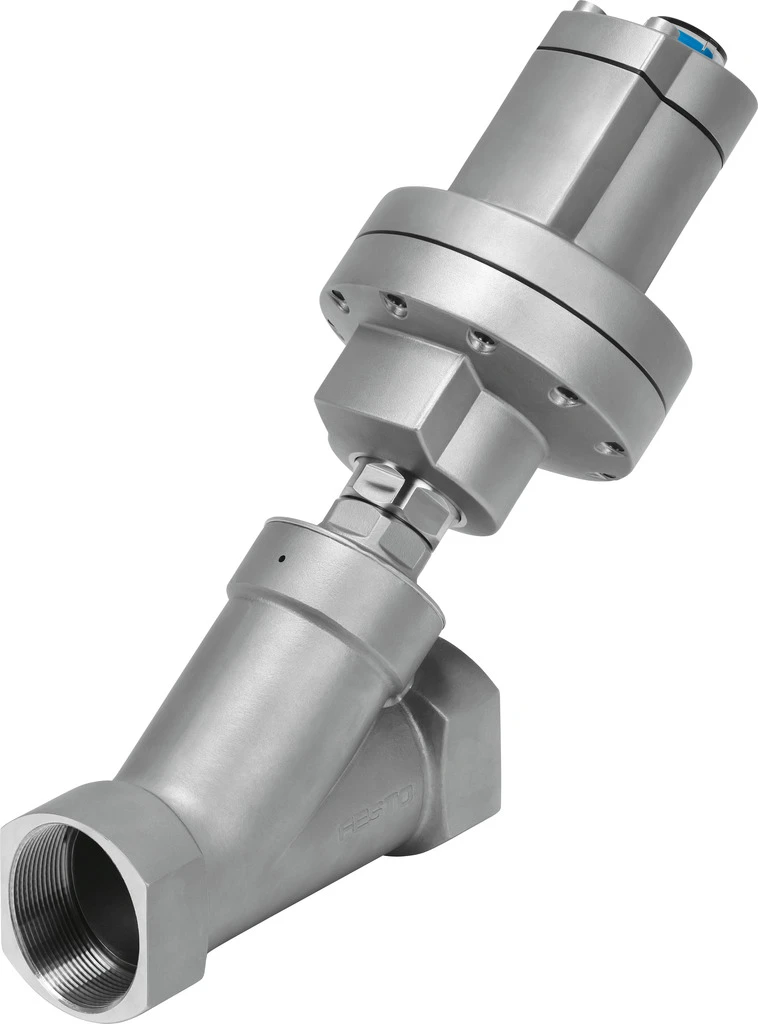

Angle seat valve, VZXA-A-TS7-1 1/2"-M2-V14T-16-M-90-26-PR-V4
SKU: 8060524
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle seat valves VZXA with stainless steel diaphragm actuator
• Control function closed via spring force, NC
• Without ATEX certification
• Design Poppet valve with diaphragm actuator
• Type of actuation Pneumatic
• Mounting position optional
• Type of mounting In-line installation
• Line connection Threaded coupling 1 1/2 NPT to ANSI/ASME B 1.20.1
• Valve function 2/2
• Flow direction Non-reversible
• Medium pressure 0 MPa ... 1.6 MPa
• Medium pressure 0 bar ... 16 bar
• Type of reset Mechanical spring
• Type of piloting Externally controlled
• Pneumatic connection Female thread G1/8
• Flow rate Kv 47.4 m³/h
• Degree of protection IP65 - IP67
Buy currently uses Select Automation shop pricing and checkout.
Angle seat valve VZXA
• Extremely high flow rates, an easy-to-clean design and a modular structure.
• You can combine valve bodies and actuators to suit your application and make it more flexible.
• Highly flexible, extremely high flow rates
• Long service life
• Stainless steel or Ecobrass process valves with stainless steel or polymer actuators
• Modular design
• Hygienic design, insensitive to dirt
• Quick and easy maintenance
• Simple and sturdy: an ideal choice for virtually all media with a viscosity of 600 mm2/s
• High chemical and thermal resistance
• Sustainable in production thanks to the use of alternative materials
