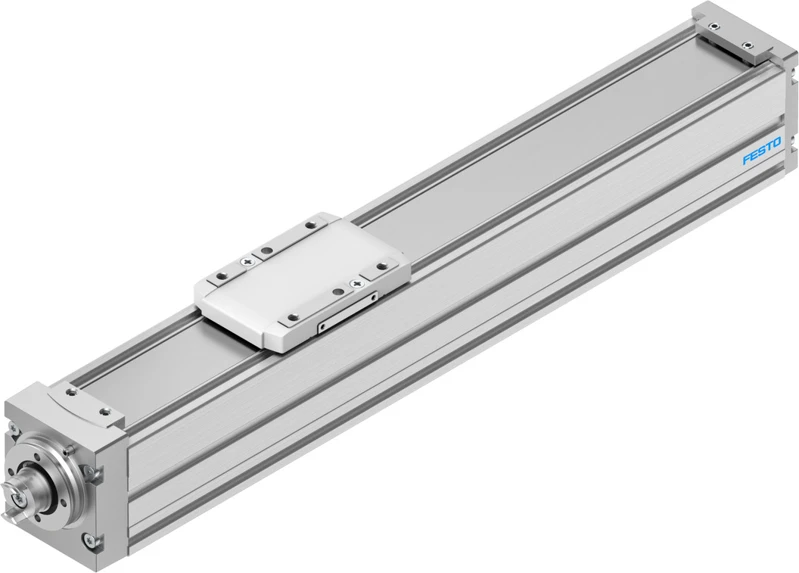

Spindle axis, ELGC-BS-KF-45-200-10P
SKU: 8061485
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spindle axis ELGC-BS
• Working stroke 200 mm
• Size 45
• Stroke reserve 0 mm
• Reversing backlash theoretical 150 µm
• Spindle diameter 10 mm
• Spindle pitch 10 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw drive
• Max. feed force Fx 100 N
• Repetition accuracy ±0.015 mm
Buy currently uses Select Automation shop pricing and checkout.
Spindle axis ELGC-BS
• The reasonably priced axis family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more.
• The spindle axes also offer impressive guide precision and a ball screw drive.
• Internal guide and ball screw drive
• Space-saving position sensing
• Flexible motor mounting
• The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation
• Variants recommended for production systems for manufacturing lithium-ion batteries
