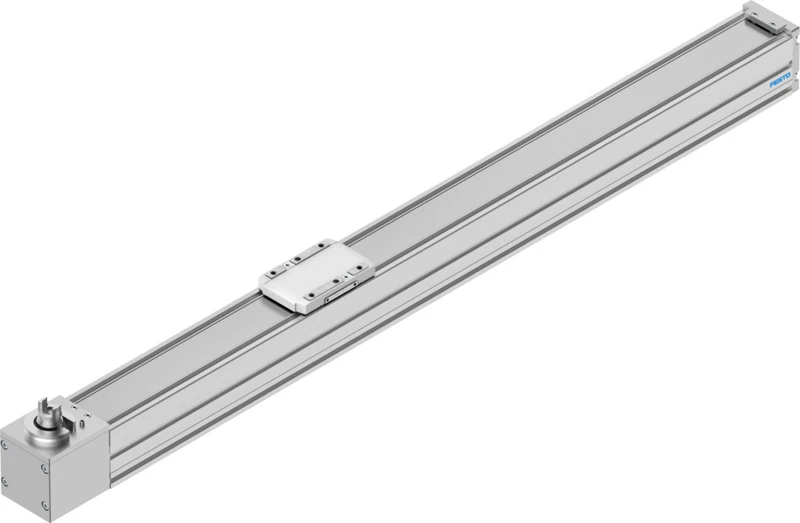

Toothed belt axis, ELGC-TB-KF-45-1000
SKU: 8062773
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axis ELGC-TB
• Effective diameter of drive pinion 19.1 mm
• Working stroke 1000 mm
• Size 45
• Stroke reserve 0 mm
• Toothed-belt pitch 2 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Symbol 00991212
• Position detection Via proximity switch, Via inductive sensors
• Max. acceleration 15 m/s²
• Max. speed 1.2 m/s
• Repetition accuracy ±0.1 mm
• Max. feed force Fx 75 N
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis ELGC-TB
• The reasonably priced axis family ELGC allows you to realize incredibly compact dimensions and make the most of your installation space – for small parts handling, desktop applications and much more.
• The toothed belt axis offers precise, durable rail guidance.
• Precision guide rail with high load capacity
• Internal guide and toothed belt
• Flexible motor mounting
• The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation
• Variants recommended for production systems for manufacturing lithium-ion batteries
