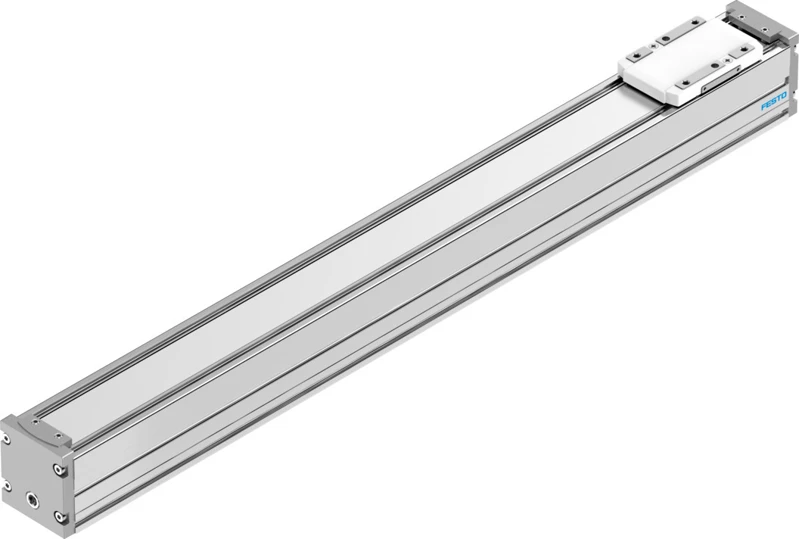

Guide axis, ELFC-KF-45-400
SKU: 8062805
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Guide axis ELFC
• Working stroke 400 mm
• Size 45
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Guidance
• Symbol 00992984
• Position detection Via proximity switch, Via inductive sensors
• Max. acceleration 15 m/s²
• Max. speed 1.5 m/s
• Duty cycle 100%
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP40
• Ambient temperature 0 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Guide axis ELFC
• Driveless guide axis ELFC suitable for the ELGC range, which supports forces and torques in multi-axis applications with a load-bearing recirculating ball bearing guide (-KF).
• Driveless linear guide unit with guide and freely movable slide unit
• High torsional resistance
• Reduced vibrations with dynamic loads
