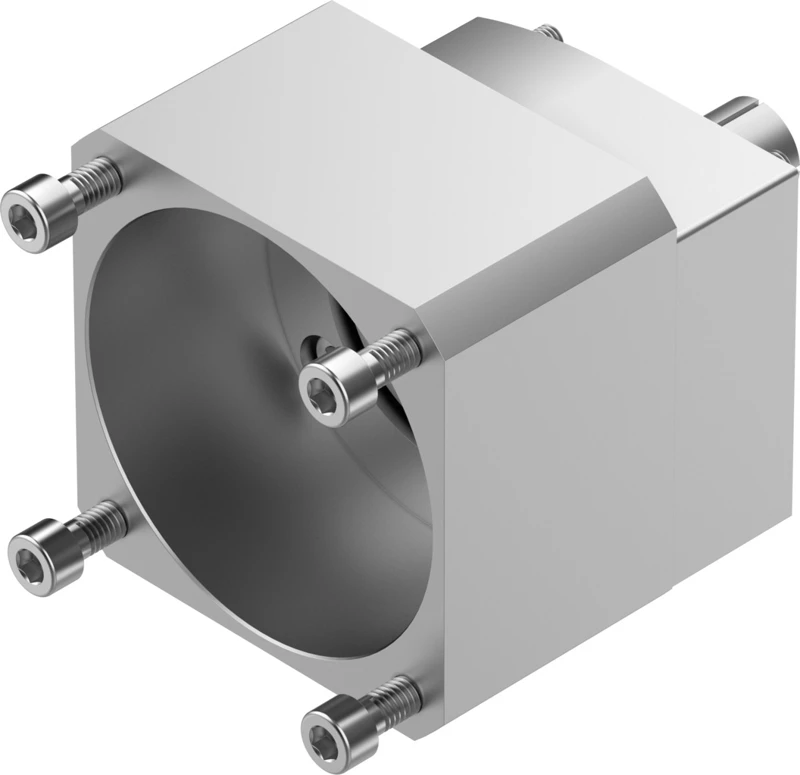

Axial kit, EAMM-A-L48-75GA

Specifications • Axial kits EAMM-A • Permissible axis/motor combinations with toothed belt axis EGC-TB • Permissible axis/motor combinations with toothed belt axis ELGD-TB-... • Nominal length 74.4 mm • Mounting position optional • Max. rotational speed 6000 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 39 kgmm² • Transmittable torque 17 Nm • Product weight 780 g • Interface code, actuator L48 • Interface code, motor in 75GA • Note on materials RoHS-compliant
