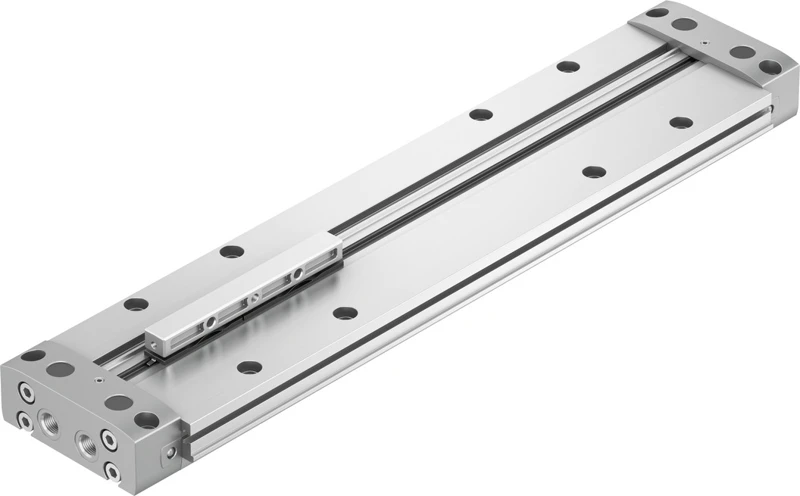

Linear drive, DLGF-...-20- -PPSA
SKU: 8063799
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drives DLGF
• Stroke 50 mm ... 1000 mm
• Piston diameter 20 mm
• Cushioning Self-adjusting pneumatic end-position cushioning
• Mounting position optional
• Guide Basic guide, Recirculating ball bearing guide
• Coupling design Positive-locking (slot)
• Position detection Via proximity switch
• Variants With mounting holes, Without mounting holes
• Operating pressure 0.2 MPa ... 0.8 MPa
• Operating pressure 2 bar ... 8 bar
• Mode of operation Double-acting
Buy currently uses Select Automation shop pricing and checkout.
Linear drive DLGF
• An extremely flat linear drive that can also be supplied/connected from underneath a work surface.
• The cost-effective DLGF can be combined with suitable cylinders and slide units without the need for adapter plates or else two DLGFs can be coupled together.
• Self-adjusting pneumatic cushioning PPS is included.
• Extremely flat design
• Choice of two types of cushioning: self-adjusting pneumatic end-position cushioning or external hydraulic shock absorbers
• Supply port on the left or right or at both ends or alternatively from below
• Loads and devices can be directly mounted on the slide
• Basic design DLGF-G without external guide for simple drive functions in small installation spaces
• Recirculating ball bearing guide DLGF-KF with a standard recirculating ball bearing guide for high torques and heavy loads
