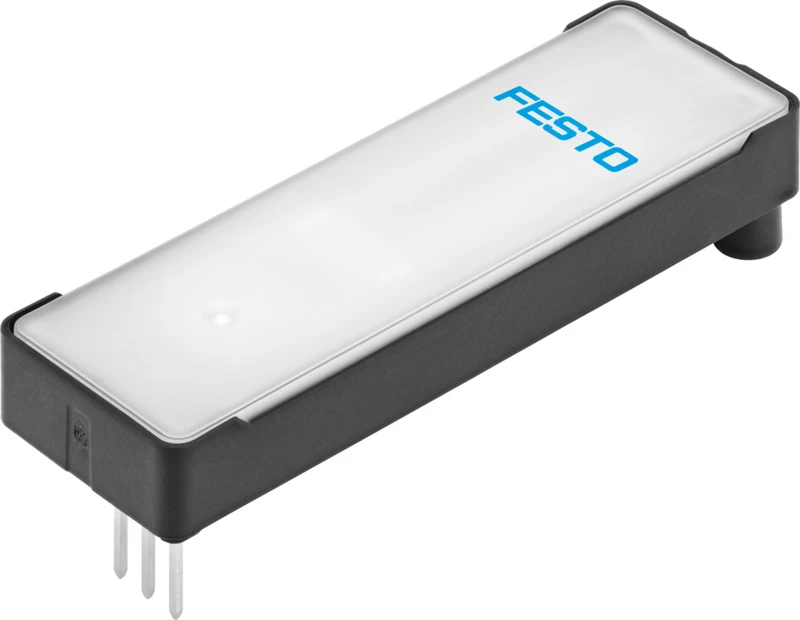

Piezo valve, VEMP-BS-3-16-D7-F-28T1
SKU: 8064294
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Piezo valves VEMP
• Size of pack 1
• Symbol 00992802
• Note on degree of protection Depending on connection block
• Standard nominal flow rate (standardised to DIN 1343) 27 l/min
• Standard nominal flow rate 2-3 28 l/min
• Flow direction Non-reversible
• Nominal operating pressure 1 bar
• Operating pressure 0 bar ... 1.1 bar
• Valve function 3/3-way, closed, monostable
• Nominal size 1.6 mm
• Type of actuation Electric
• Pneumatic connection, port 1 Flange
• Pneumatic connection, port 2 Flange
• Pneumatic connection, port 3 Flange
• Nominal operating voltage DC 310 V
Buy currently uses Select Automation shop pricing and checkout.
Piezo valve VEMP
• Lightweight and small piezo valve for proportional control of pressure or flow rate.
• Ideal for use in mobile devices, e.g. in medical technology.
• When combined with a sensor, it can be used as a control valve.
• Very low power consumption
• No self-heating
• Low leakage
• Highly precise
• Operating medium: air, oxygen, inert gases, nitrogen
• Integrated piezo technology
• Long service life
• Light weight
• Mounting: on sub-base, on manifold rail
