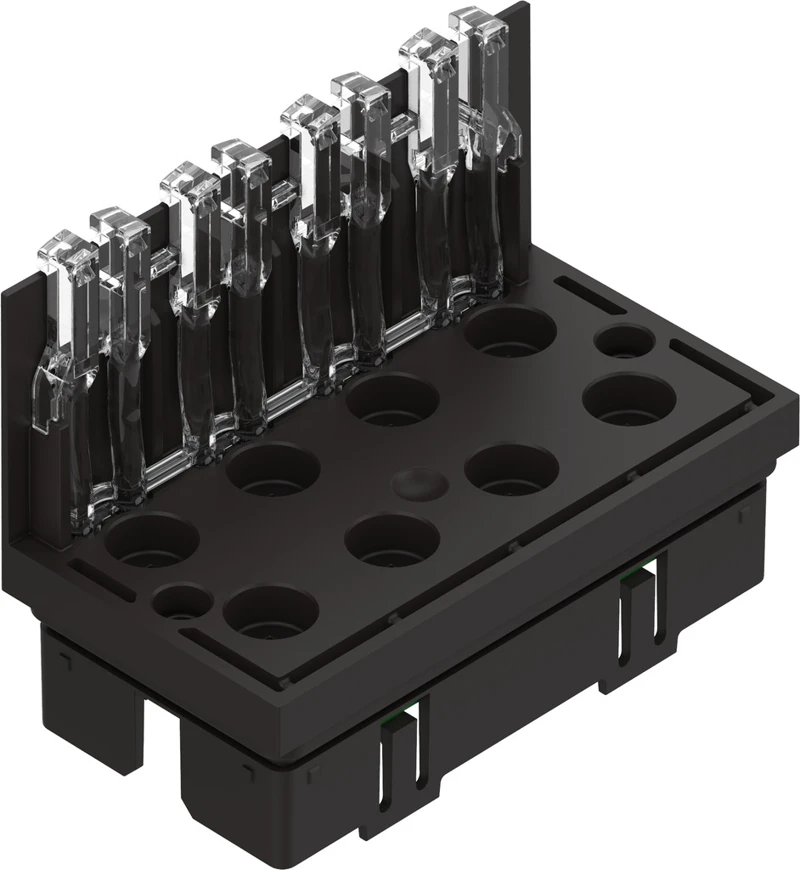

Electronics module, VMPA14-FB-EMG-D2-8

Specifications • Accessories for Valve terminal MPA-S • Electronics module • Diagnosis Condition monitoring, Wire break per solenoid coil, Short circuit of valves, Undervoltage of valves • Max. number of valve positions 4 • Max. number of valve coils 8 • Internal current consumption, load voltage 23 mA • Internal current consumption, operating voltage 8 mA • Nominal pick-up current per solenoid coil 58 mA up to 24 ms • Nominal current with current reduction 9 mA after 24 ms • Corrosion resistance class CRC 1 - Low corrosion stress (when installed)
