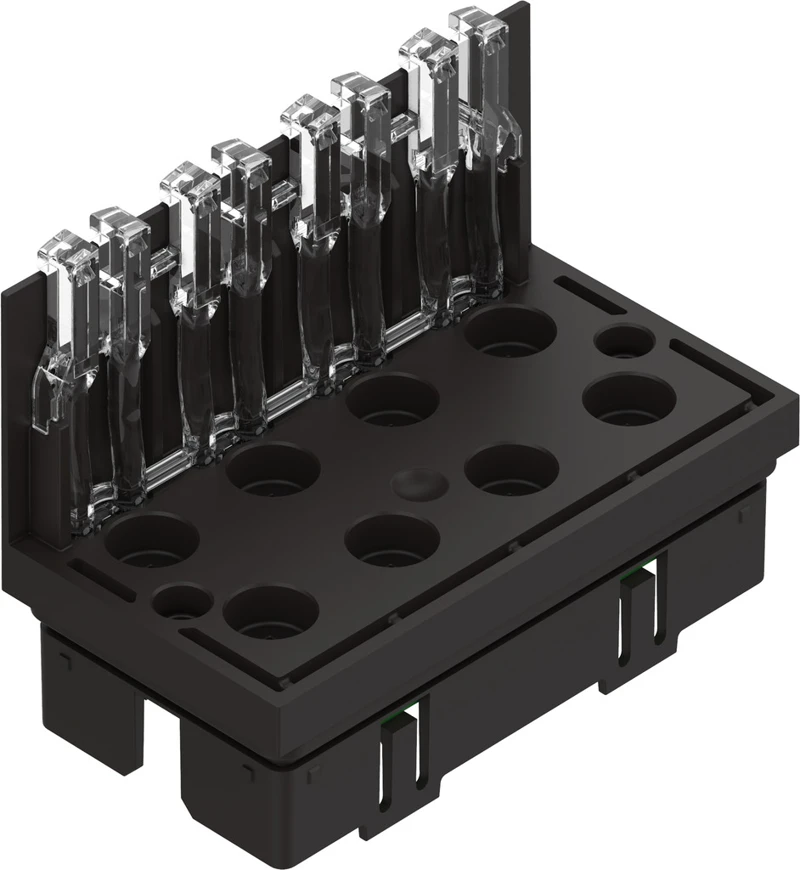

Electronics module, VMPA14-MPM-EMM-4

Specifications • Accessories for Valve terminal MPA-S • Electronics module • Max. number of valve positions 4 • Max. number of valve coils 4 • Nominal pick-up current per solenoid coil 80 mA up to 25 ms • Nominal current with current reduction 25 mA after 25 ms • Corrosion resistance class CRC 1 - Low corrosion stress (when installed) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 30 g • Material housing POM • Note on materials RoHS-compliant
