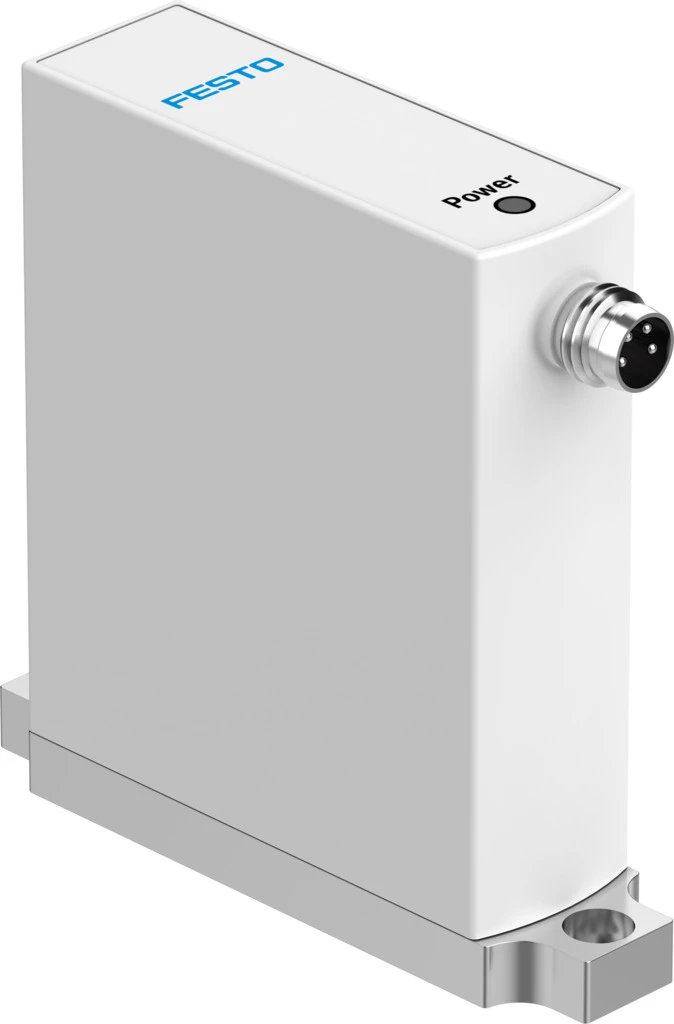

Proportional-pressure regulator, VEAB-B-26-D18-F-A4-1R1
SKU: 8067672
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional-pressure regulators VEAB
• Valve function 3-way proportional pressure regulator
• Type of piloting Direct
• Type of reset Mechanical spring
• Type of actuation Electric
• Mounting position optional
• Sealing principle Soft
• Symbol 00995607
• Ambient temperature 0 °C ... 50 °C
• Media temperature 5 °C ... 50 °C
• Storage temperature -20 °C ... 70 °C
• Dimensions (W x L x H) 18 x 67 x 66 mm
• Pneumatic connection, port 1 Flange
• Pneumatic connection, port 2 Flange
• Pneumatic connection, port 3 Flange
• Electrical connection 4-pin - M8x1 - Plugs - To EN 60947-5-2
• Standard nominal flow rate (standardised to DIN 1343) 21 l/min
• Standard nominal flow rate 2-3 14.5 l/min
Buy currently uses Select Automation shop pricing and checkout.
Proportional-pressure regulator VEAB
• For pressure ranges up to 6 bar: piezo technology makes the VEAB extremely precise and gives it a very long service life.
• Other benefits include extremely short switching times, quiet operation and very low power consumption.
• Silent operation
• Very low power consumption
• Highly precise
• Integrated piezo technology
• Short switching times
• Mounting: using through-holes, H-rail mounting
• Sustainable operation thanks to reduced pressure level and efficient control
