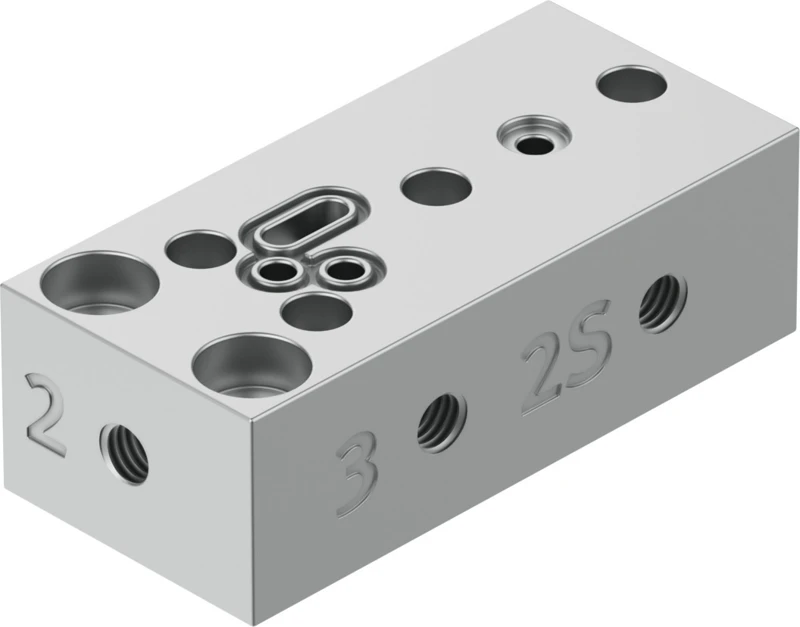

Sub-base, VABS-P12-S-M5-P3

Specifications • Piezo valves VEMP • Accessories, Sub-base • Construction width 25 mm • Mounting position optional • Special characteristics Oxygen-compatible to DIN EN 1797 • Max. number of valve positions 1 • Operating pressure 0 bar ... 1.7 bar • Standard nominal flow rate (standardised to DIN 1343) ≥27 l/min • Standard nominal flow rate 2-3 ≥28 l/min • Operating medium Compressed air as per ISO 8573-1:2010 [5:3:1], Inert gases, Oxygen • Note on operating and pilot medium Lubricated operation not possible, Maximum particle size 5 µm • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L
