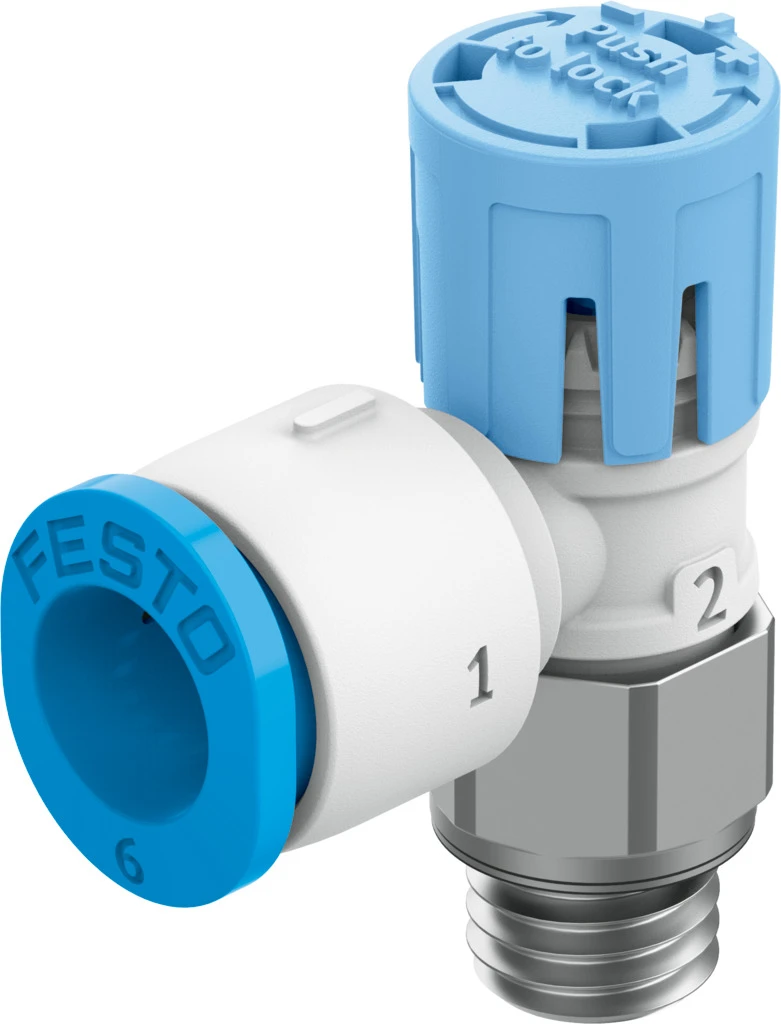

One-way flow control valve, VFOE-LS-T-M7-Q6
SKU: 8068746
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valve VFOE
• Valve function Supply air one-way flow control function
• Pneumatic connection, port 1 QS-6
• Pneumatic connection, port 2 M7
• Type of actuation Manual
• Adjustment component Rotary knob with detent
• Type of mounting Screw-in
• Standard nominal flow rate in flow control direction 100 l/min
• Standard nominal flow rate in blocked direction 60 l/min ... 100 l/min
• Ambient temperature -10 °C ... 60 °C
• Material housing PBT
• Mounting position optional
• Symbol 00991453
• Width across flats 9 mm
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valve VFOE
• Barely thicker than a tube and just as lightweight, the one-way flow control valve can be mounted directly on the drive.
• Low-cost solution for standard applications
• Simple and reliable adjustment of pneumatic cylinder speed
• Extremely easy assembly
• Fast commissioning
• Compact dimensions
