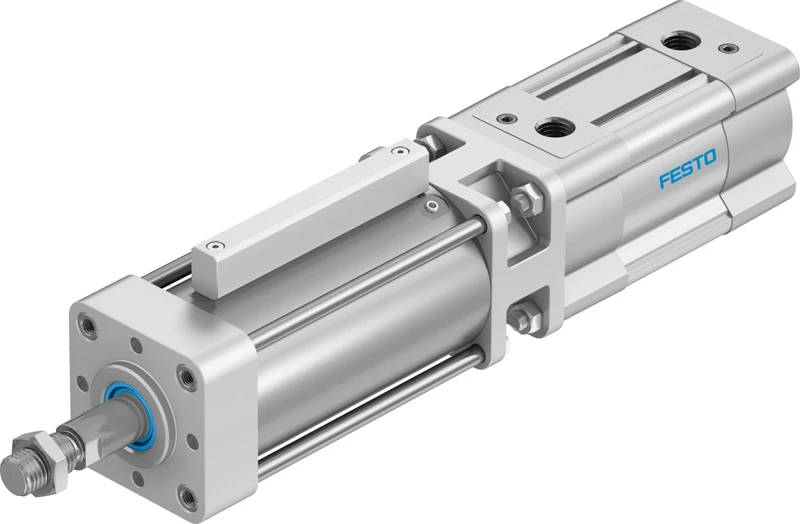

Cylinder with holding brake, DFLC-63- -
SKU: 8073332
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Cylinder with holding brake DFLC
• Stroke 10 mm ... 2000 mm
• Piston diameter 63 mm
• Piston rod thread M16x1.5
• Based on standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
• Cushioning Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Type of clamping with direction of action on both sides, Clamping via spring force, air to release
• Piston-rod end Male thread
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
• Symbol 00995696
• Variants Piston rod at one end
Buy currently uses Select Automation shop pricing and checkout.
Cylinder with holding brake DFLC
• Profile cylinder with upstream holding brake for applications with safety circuits.
• Combination of holding brake and standards-based cylinder based on ISO 15552
• Holding function: retains the piston rod by clamping with frictional locking
• Emergency braking function: stops the movement of the piston rod by clamping with frictional locking
• With safety functions
• Variants to EU Explosion Protection Directive (ATEX)
• Optional: high level of corrosion protection
• For position sensing
