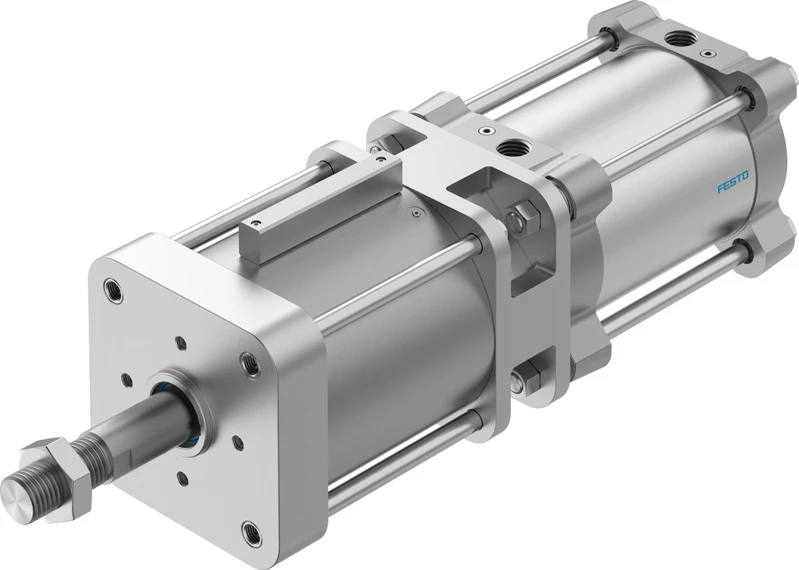

Cylinder with holding brake, DFLG-160- -

Specifications • Cylinders with holding brake DFLG • Stroke 10 mm ... 2000 mm • Piston diameter 160 mm • Piston rod thread M36x2 • Based on standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) • Cushioning Pneumatic cushioning, adjustable at both ends • Mounting position optional • Type of clamping with direction of action on both sides, Clamping via spring force, air to release • Piston-rod end Male thread • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch • Symbol 00995696 • Variants Piston rod at one end
