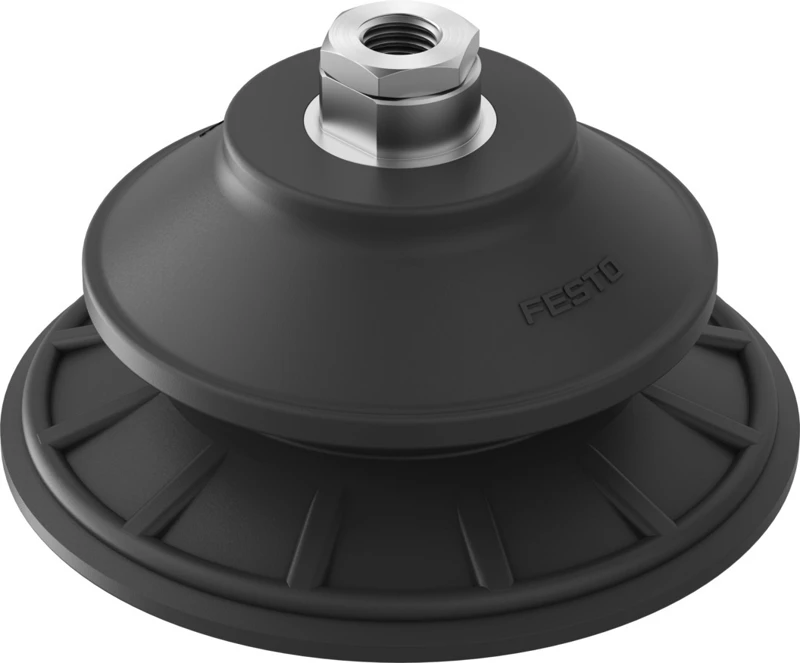

Suction cup complete, OGVM-125-A-N-G14F
SKU: 8073841
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cup with connection OGVM
• Height compensator for suction cup 32 mm
• Min. workpiece radius 140 mm
• Nominal size 8 mm
• Suction cup diameter 125 mm
• Suction cup volume 241 cm³
• Position of connection Top
• Mounting position optional
• Symbol 00991485
• Suction cup shape Round bellows 1.5 convolutions
• Operating pressure -0.095 MPa ... 0 MPa
• Operating pressure -0.95 bar ... 0 bar
• Operating pressure -13.775 psi ... 0 psi
• Nominal operating pressure -0.06 MPa
• Nominal operating pressure -0.6 bar
• Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
• Holding force at nominal operating pressure 587 N
• Material suction cup NBR
Buy currently uses Select Automation shop pricing and checkout.
Suction cup with connection OGVM
• Thanks to its special anti-slip design, the sturdy suction cup with connection OGVM has everything under control; it is ideal for extremely dynamic handling of workpieces with complex contours, it improves productivity and ensures maximum process reliability.
• Extremely energy efficient, very high transverse forces, minimal suction times
• Optimum suction ergonomics for maximum process reliability
• Ideal for workpieces with complex contours
• Accessories available for a wide range of applications
• Suction cup shape round or oval, in various designs
