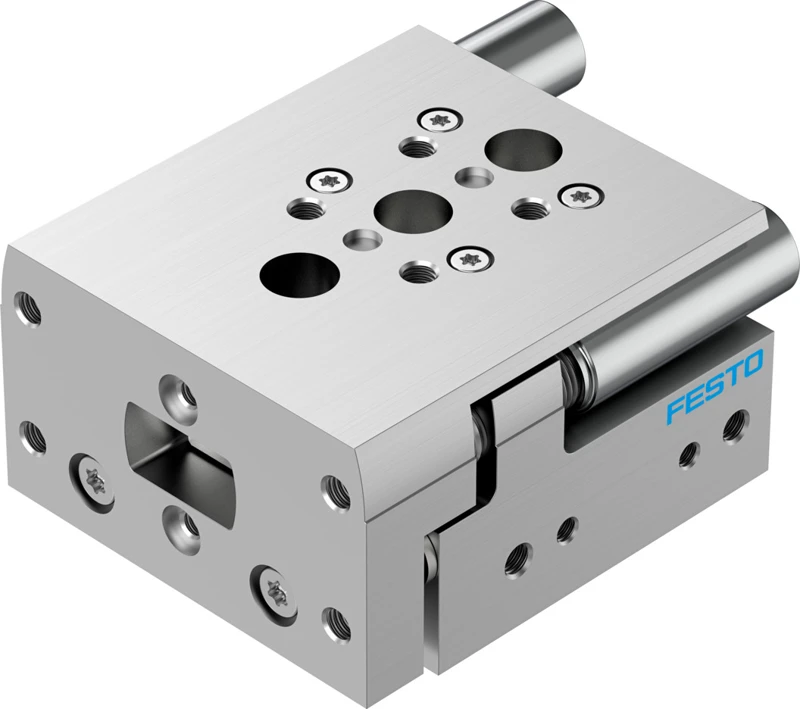

Mini slide, DGST-16- -
SKU: 8073895
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slide DGST
• See datasheet for available configurations
• Stroke 10 mm ... 150 mm
• Adjustable end position range/length front 6.2 mm ... 22.8 mm
• Adjustable end position range/length rear 6.35 mm ... 21.5 mm
• Piston diameter 16 mm
• Operating mode, drive unit Yoke
• Cushioning Short elastic cushioning rings/pads at both ends, Elastomer cushioning, double-sided, stroke not adjustable, Elastic cushioning rings/plates at both ends, Elastic cushioning rings/pads at both ends with fixed stop, External hydraulic cushioning
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Twin piston, Yoke, Piston rod, Slide
• Position detection Via proximity switch
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 241 N
Buy currently uses Select Automation shop pricing and checkout.
Mini slide DGST
• The most compact slide on the market. Comes with integrated shock absorber and sensor holders, and integrated basic cushioning.
• Best of all: the slide and yoke are a single component ‒ offering great torsional rigidity and unrivalled precision.
• Powerful twin-piston drive
• Shortest mini slide on the market
• Precise recirculating ball bearing guide
• Versatile mounting options
• Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator
• Variants recommended for production systems for manufacturing lithium-ion batteries
• Sustainable in production thanks to reduced use of materials
