Mini slides DGST, double-acting, Accessories, DYEF-G8-M10-Y1
SKU: 8073906
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slides DGST, double-acting

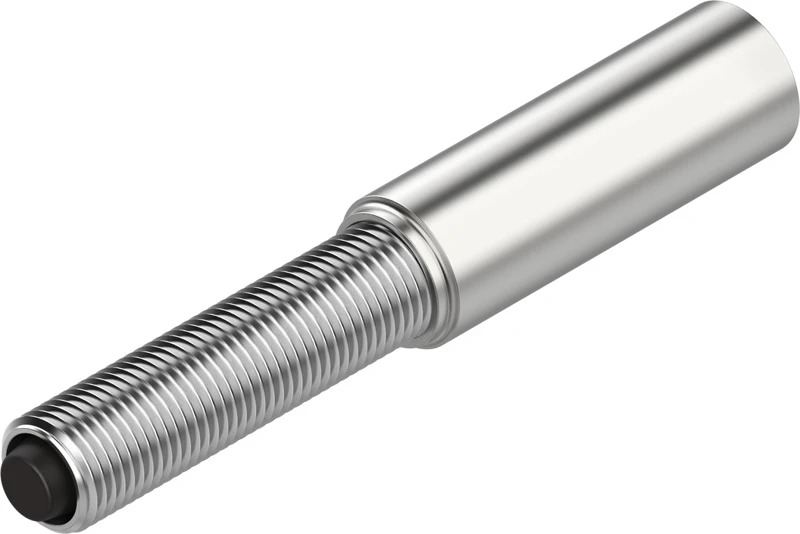

• Accessories, Shock absorber
• Size M10
• Stroke 1 mm
• Cushioning Elastic cushioning rings/pads at both ends without metal fixed stop
• Mounting position optional
• Position detection Without
• Max. impact speed 0.8 m/s
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -10 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Mini slides DGST, double-acting
• Very compact design
• Shortest mini slide on the market
• Powerful twin-piston drive
• Very precise recirculating ball bearing guide
• Yoke plate and slide manufactured from a single piece
• Easy end-position adjustment
• Short cycle times and high effective force with twin piston
• High precision and robustness
