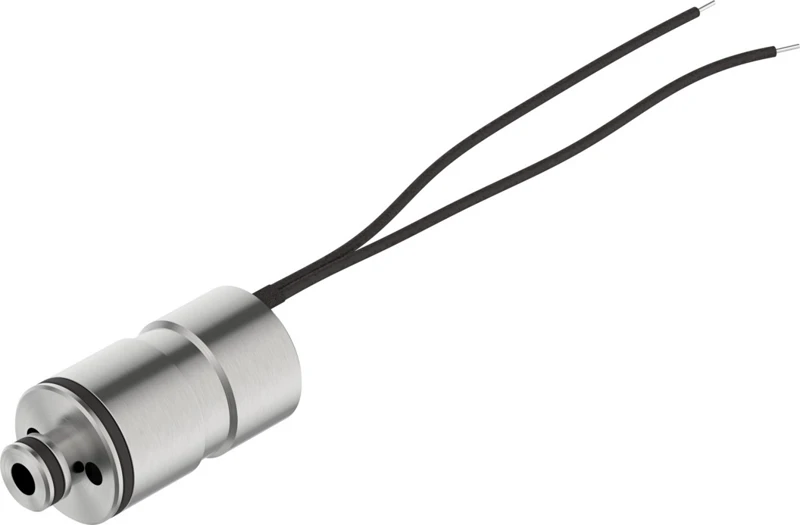

Proportional directional control valve, VPWS-1.5-B-6-PC15-8-V
SKU: 8074075
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional directional control valves VPWS
• Nominal size 1.5 mm
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Design Directly actuated poppet valve
• Type of reset Mechanical spring
• Type of piloting Direct
• Flow direction Non-reversible
• Symbol 00995954
• Valve function 2/2 proportional directional control valve, closed
• Pneumatic connection, port 1 Cartridge 15 mm
• Standard flow rate (standardised to DIN 1343) 82 l/min - 98 l/min
Buy currently uses Select Automation shop pricing and checkout.
Proportional directional control valve VPWS
• The proportional solenoid valve VPWS is a lightweight, compact, high-performance 15 mm cartridge valve with a high flow rate.
• It regulates gas flows reliably and precisely, whether with oxygen, carbon oxide, air, nitrous oxide, or inert gases.
• Directly actuated poppet valve
• Operating medium: air, oxygen, inert gases
• Extremely small and lightweight
• Compact and cost-effective
• Mounting: on sub-base
