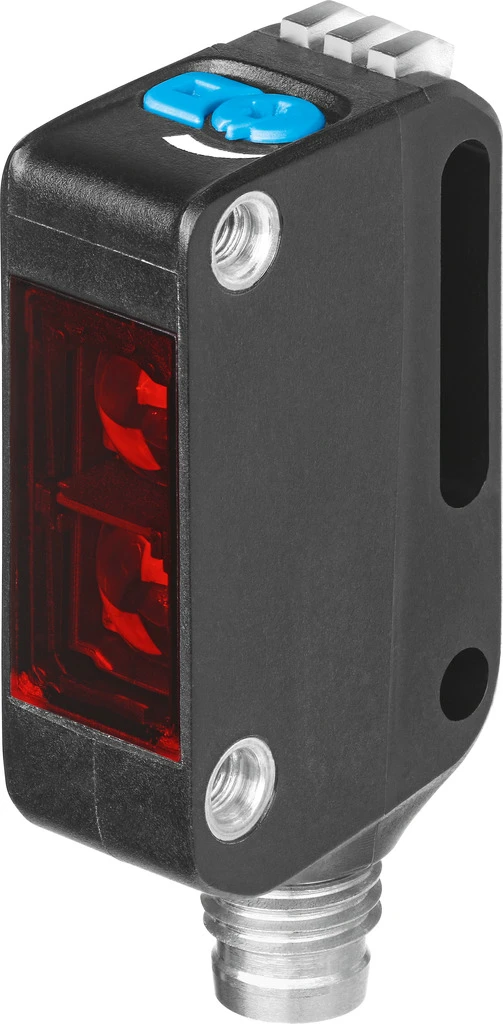

Diffuse sensor, SOOE-BS-R-PNLK-T
SKU: 8075664
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Diffuse sensors with background suppression SOOE
• No-load supply current 25 mA
• Type of light Red - LED
• Operating distance 5 mm - 350 mm
• Degree of protection IP65 - IP67 - IP69K
• Ambient temperature -40 °C - 60 °C
• Design Block design
• Measuring principle Optoelectronic
• Detection method Diffuse sensor with background clipping
• Max. light spot 20 mm at a sensing range of 350 mm
• Min. object diameter 10 mm
Buy currently uses Select Automation shop pricing and checkout.
Optoelectronic sensor SOOE
• The SOOE provides you with all the optical functions for object detection in one identical sensor housing.
• From through-beam sensing to distance sensing, you will benefit from innovative technologies and reduce the variety of parts thanks to consistent mounting.
• Simple operation
• Fast commissioning
• Reliable and stable detection
• Attractive price/performance ratio
