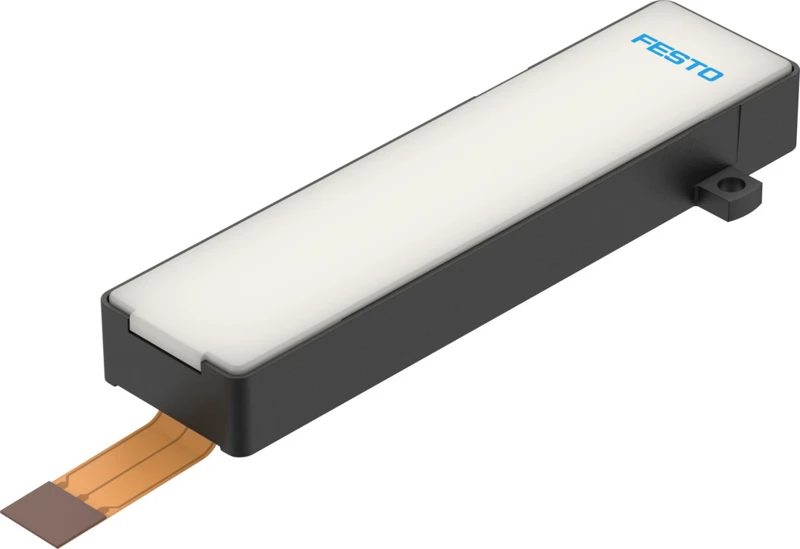

Piezo valve, VEAE-BB-6-17-D22-X4
SKU: 8078917
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Piezo valve VEAE
• Valve function 2/2-way, closed, monostable
• Flow direction Non-reversible
• Type of piloting Direct
• Type of reset Mechanical spring
• Type of actuation Electric
• Mounting position optional
• Grid dimension 20.5 mm
• Sealing principle Soft
• Nominal size 1.7 mm
• Total leakage
Buy currently uses Select Automation shop pricing and checkout.
Piezo valve VEAE
• The piezo valve VEAE is energy-efficient, light and quiet.
• It is suitable for use wherever flow rates up to 80 l/min need to be controlled reliably and precisely, e.g. in fixed or mobile applications in medical technology.
• Silent operation
• Very low power consumption
• No self-heating
• Integrated piezo technology
• Extremely long service life
• Operating medium: air, oxygen, inert gases
• Small and lightweight
• High throughflow
• Mounting via through-holes
