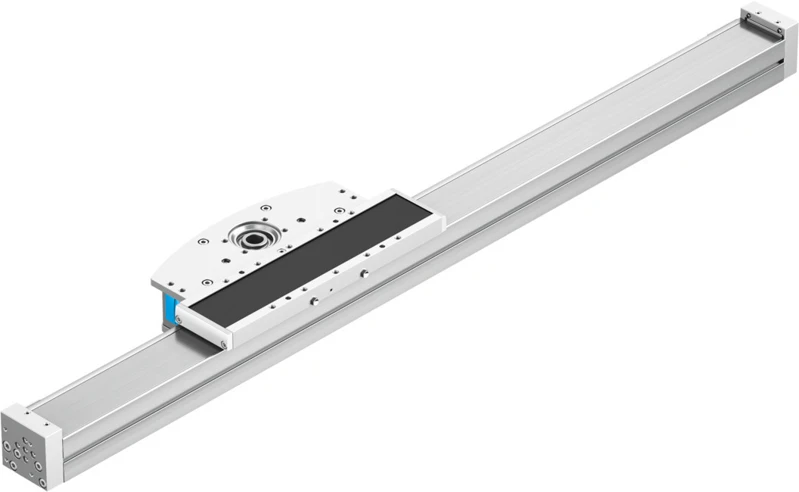

Cantilever axis, ELCC-TB-KF-60-200-0H-P0-CR
SKU: 8082386
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Cantilever axes ELCC
• Effective diameter of drive pinion 30.558 mm
• Working stroke 200 mm
• Size 60
• Stroke reserve 0 mm
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical cantilever axis
• Symbol 00991210
• Max. acceleration 50 m/s²
• Max. speed 5 m/s
• Repetition accuracy ±0.05 mm
• Max. feed force Fx 300 N
Buy currently uses Select Automation shop pricing and checkout.
Cantilever axis ELCC
• Very lightweight and yet rigid at the same time!
• Whether for palletising, packaging or for a wide variety of positioning tasks with long strokes, the dynamic cantilever axes ELCC for loads of up to 100 kg are extremely impressive thanks to less oscillation and cycle times that are up to 30% shorter.
• Axis for high speeds and acceleration
• Very low moving mass thanks to fixed drive head
• High rigidity thanks to innovative design principle
• Toothed belt drive with recirculating ball bearing guide
• Able to move high loads of up to 100 kg vertically
• Long strokes of up to 2 m possible
