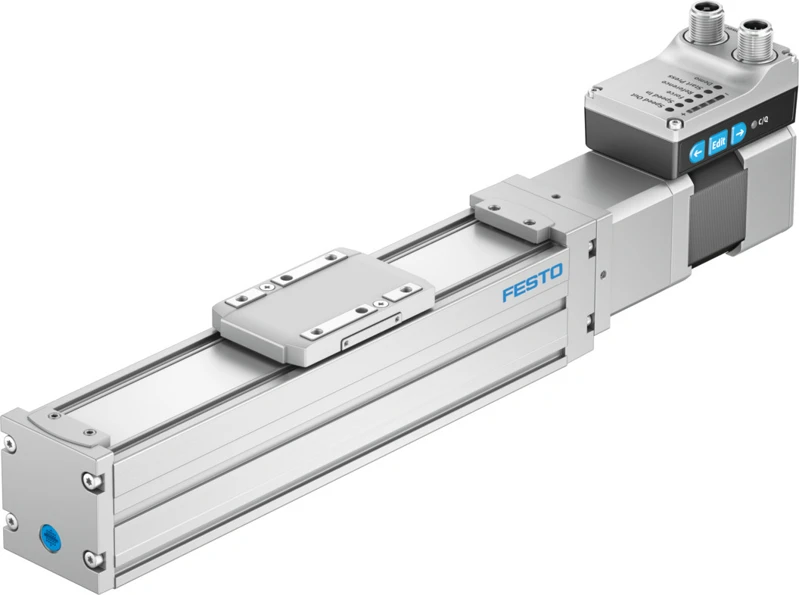

Ball screw axis unit, ELGS-BS-KF-45-500-10P-ST-M-H1-PLK-AA
SKU: 8083474
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball screw axis unit ELGS-BS
• Working stroke 500 mm
• Size 45
• Stroke reserve 0 mm
• Spindle diameter 10 mm
• Spindle pitch 10 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw, With integrated drive
• Type of motor Stepper motor
• Spindle type Ball screw drive
• Symbol 00997292
• Position detection Motor encoder, Via proximity switch
• Max. feed force Fx 100 N
• Repetition accuracy ±0.015 mm
Buy currently uses Select Automation shop pricing and checkout.
Ball screw axis unit ELGS-BS
• Resilient, low-cost spindle axis unit with covered guide and a slide with resilient recirculating ball bearing guide for simple moving and positioning tasks.
• Perfect for compact and cost-effective implementation of simple linear movements such as shifting and lifting.
• As part of the Simplified Motion Series, the ELGS-BS is easy to configure and can be commissioned straightaway without any software.
• Complete solution consisting of drive mechanics, motor and servo drive
• Precise XY movements thanks to the slide with powerful ball screw and resilient recirculating ball bearing guide
• Protected against external influences by internal guide
• Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation
• Two control options integrated as standard: digital I/O and IO-Link
