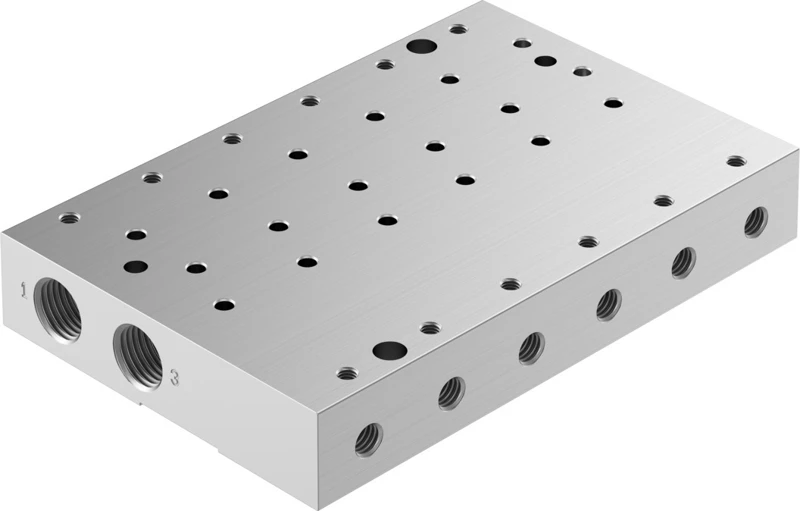

Manifold rail, VABM-P6-15M-G18-M5-6

Specifications • Proportional-pressure regulator VEAA • Accessories, Manifold rail, connection direction on the side • Grid dimension 15 mm • Design Connection direction at side • Max. number of valve positions 6 • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Max. tightening torque for valve mounting 0.6 Nm • Product weight 210 g • Pneumatic connection, port 1 G1/8 • Pneumatic connection, port 2 M5 • Note on materials RoHS-compliant • Material manifold rail Wrought aluminium alloy
