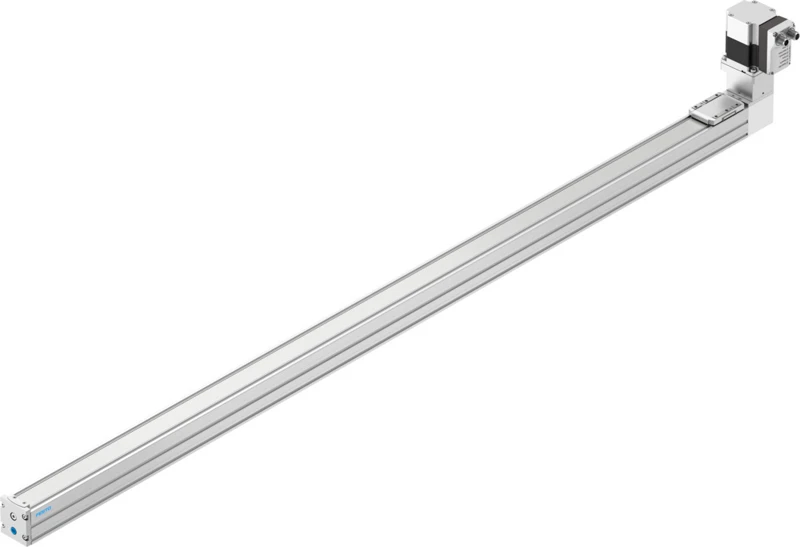

Toothed belt axis unit, ELGS-TB-KF-45-1200-ST-M-H1-PLK-AA
SKU: 8083671
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axis unit ELGS-TB
• Effective diameter of drive pinion 19.1 mm
• Working stroke 1200 mm
• Size 45
• Stroke reserve 0 mm
• Toothed-belt stretch 0.187 %
• Toothed-belt pitch 2 mm
• Mounting position Horizontal
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt, With integrated drive
• Type of motor Stepper motor
• Symbol 00997293
• Position detection Motor encoder, Via proximity switch
• Max. feed force Fx 75 N
• Repetition accuracy ±0.1 mm
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis unit ELGS-TB
• Dynamic, low-cost toothed belt axis unit with covered guide and a slide with resilient recirculating ball bearing guide for very simple moving and positioning tasks.
• Perfect for compact and cost-effective implementation of simple linear movements such as shifting and lifting.
• As part of the Simplified Motion Series, the ELGS-TB is easy to configure and can be commissioned straightaway without any software.
• Complete solution consisting of drive mechanics, motor and servo drive
• Dynamic XY movements thanks to the slide with resilient toothed belt and recirculating ball bearing guide
• Protected against external influences by internal guide
• Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation
• Two control options integrated as standard: digital I/O and IO-Link
