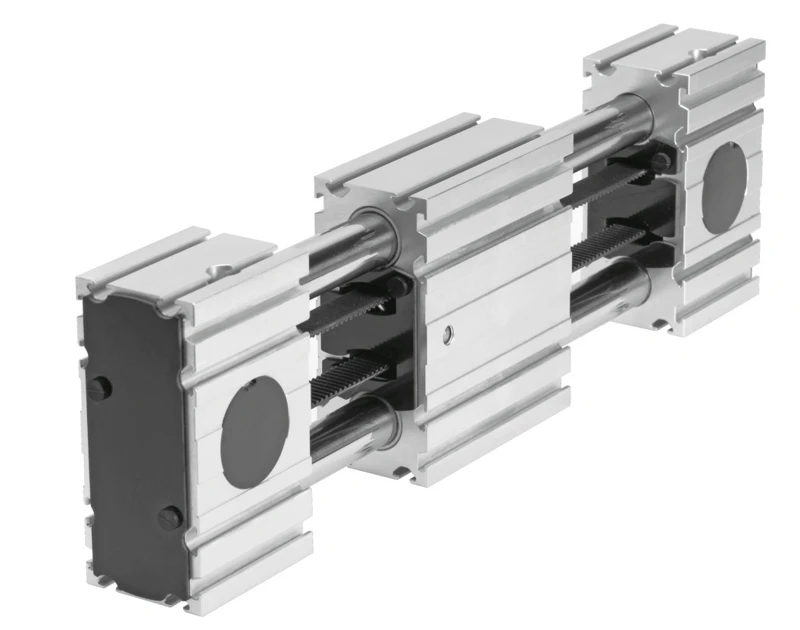

Toothed belt axis, ELGR-TB-45-500-0H
SKU: 8083780
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes ELGR
• Effective diameter of drive pinion 24.83 mm
• Working stroke 500 mm
• Size 45
• Toothed-belt stretch 0.08 %
• Toothed-belt pitch 3 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Symbol 00991212
• Max. acceleration 50 m/s²
• Max. speed 1 m/s ... 3 m/s
• Repetition accuracy ±0.1 mm
• Max. feed force Fx 100 N
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis ELGR-TB
• The cost-effective toothed belt axis ELGR with stepper motor offers you a reliable means of executing simple movements at high speeds.
• Optimum price/performance ratio
• Ready-to-install unit for quick and easy design
• With plain or recirculating ball bearing guide
• Motor can be mounted on 4 sides
