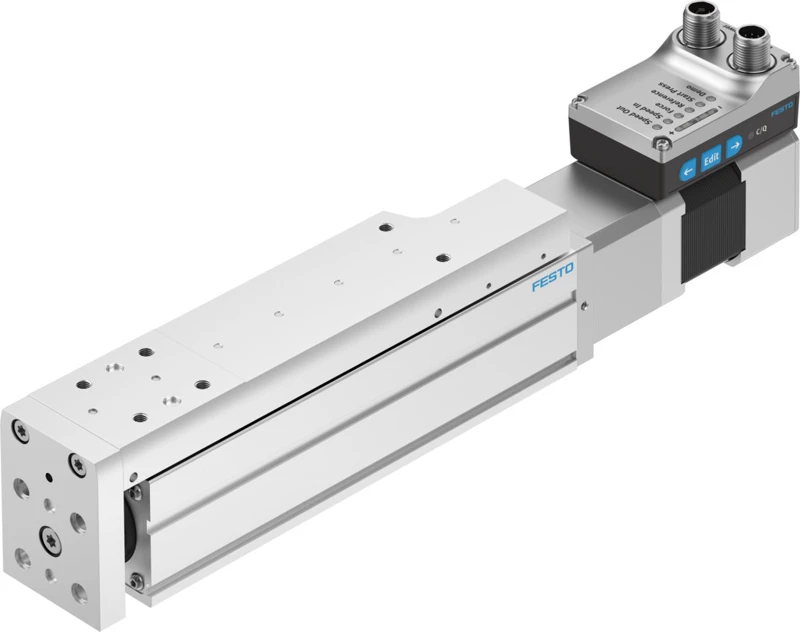

Mini slide unit, EGSS-BS-KF-45-125-10P-ST-M-H1-PLK-AA
SKU: 8083818
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slide unit EGSS
• Working stroke 125 mm
• Size 45
• Stroke reserve 0 mm
• Reversing backlash theoretical 150 µm
• Spindle diameter 10 mm
• Spindle pitch 10 mm/U
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electric mini slide, With ball screw drive, With integrated drive
• Type of motor Stepper motor
• Referencing Positive fixed stop block, Negative fixed stop block
• Spindle type Ball screw drive
• Max. feed force Fx 120 N
• Repetition accuracy ±0.015 mm
Buy currently uses Select Automation shop pricing and checkout.
Mini slide unit EGSS
• Resilient, low-cost mini slide unit with smooth and precise ball screw and a slide with sturdy recirculating ball bearing guide for very simple moving and positioning tasks.
• Perfect for guided motion, simple pressing-in functions or vertical Z-movements.
• As part of the Simplified Motion Series, EGSS is easy to configure and can be commissioned directly without software.
• Complete solution consisting of drive mechanics, motor and servo drive
• Increased protection against rotation and absorption of lateral forces thanks to rigid, resilient and precise linear guide
• Precise positioning thanks to smoothly running ball screw drive
• Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation
• Two control options integrated as standard: digital I/O and IO-Link
