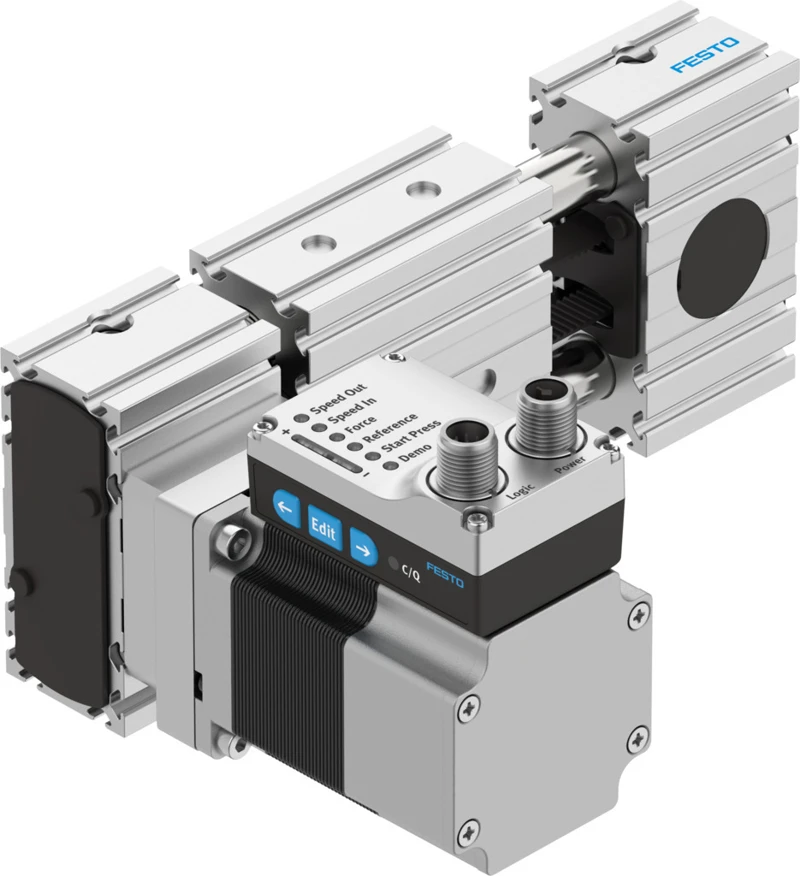

Toothed belt axis unit, ELGE-TB-35-100-0H-ST-M-H1-PLK-AA-AT-FR
SKU: 8083931
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axis unit ELGE-TB
• Drive pinion effective diameter 18.46 mm
• Working stroke 100 mm
• Size 35
• Toothed belt elongation 0.094 %
• Toothed belt pitch 2 mm
• Mounting position Horizontal
• Guide Recirculating ball bearing guide
• Structural design Electromechanical linear axis with toothed belt, With integrated drive
• Motor type Stepper motor
• Symbol 00997293
• Position sensing Motor encoder, For proximity senso
• Max. feed force Fx 50 N
• Repetition accuracy ±0.1 mm
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis unit ELGE-TB
• Dynamic, extremely attractively priced toothed belt axis unit with smooth running behaviour for the simplest movement & positioning tasks.
• Ideal for economical shifting and transfer applications.
• As part of the Simplified Motion Series, ELGE-TB is easy to configure and can be put into operation directly without software.
• Complete solution consisting of drive mechanics, motor and servo drive
• Cost-optimized design for the simplest movement and positioning tasks
• Ready-to-install unit for quick and easy design
• Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation
• Two control options integrated as standard: digital I/O and IO-Link
