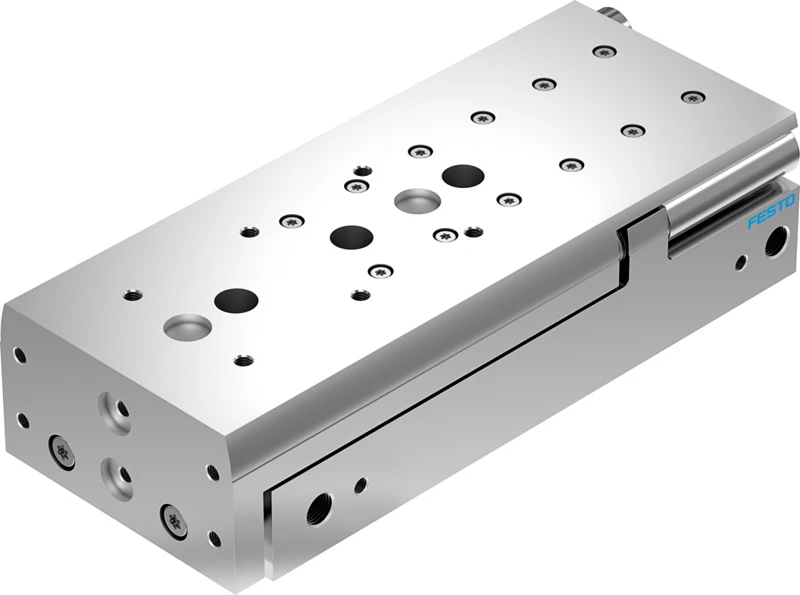

Mini slide, DGST-20-100-PA
SKU: 8085145
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slide DGST
• Stroke 100 mm
• Adjustable end position range/length front 32.9 mm
• Adjustable end position range/length rear 31.1 mm
• Piston diameter 20 mm
• Operating mode, drive unit Yoke
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Guide Ball bearing cage guide
• Design Twin piston, Yoke, Piston rod, Slide
• Position detection Via proximity switch
• Symbol 00991249
• Operating pressure 0.1 MPa ... 0.8 MPa
• Operating pressure 1 bar ... 8 bar
• Operating pressure 14.5 psi ... 116 psi
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 377 N
Buy currently uses Select Automation shop pricing and checkout.
Mini slide DGST
• The most compact slide on the market. Comes with integrated shock absorber and sensor holders, and integrated basic cushioning.
• Best of all: the slide and yoke are a single component ‒ offering great torsional rigidity and unrivalled precision.
• Powerful twin-piston drive
• Shortest mini slide on the market
• Precise recirculating ball bearing guide
• Versatile mounting options
• Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator
• Variants recommended for production systems for manufacturing lithium-ion batteries
• Sustainable in production thanks to reduced use of materials
