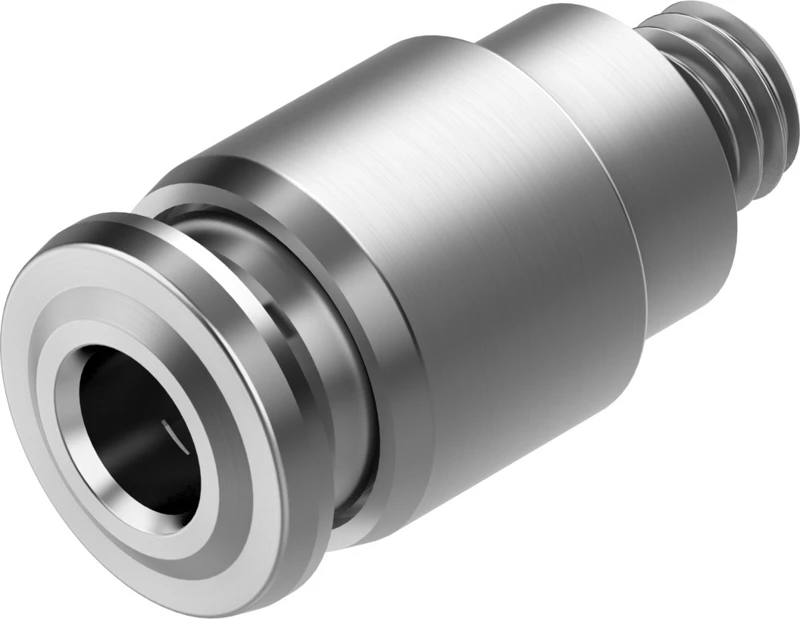

Push-in fitting, NPQR-DK-M5-Q6
SKU: 8085659
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Media separated solenoid valves VYKA
• Push-in fitting For tubing O.D. 6 mm
• Size Standard
• Nominal size 2.6 mm
• Tubing insertion depth 13.5 mm
• Type of seal on screwed plug Sealing ring
• Mounting position optional
• Design Straight design
• Size of pack 1
• Design Push-pull principle
• Symbol 00997424
• Operating pressure complete temperature range -0.095 MPa ... 1.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 16 bar
• Pneumatic connection, port 1 Male thread M5
• Pneumatic connection, port 2 For tubing outside diameter of 6 mm
• Ambient temperature -20 °C - 150 °C
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting, stainless steel NPQR
• The sturdy, stainless-steel push-in fitting NPQR has fewer edges where dirt can collect and is highly resistant to most media.
• This makes it ideal for use in the food industry, as well as in applications in the process industry, battery manufacturing or the automotive industry.
• Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate
• Optimal price/performance ratio, perfect for applications from a single source
• Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance
• High temperature resistance
• Stainless steel
• Operating media: compressed air, vacuum, (water)
• Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
