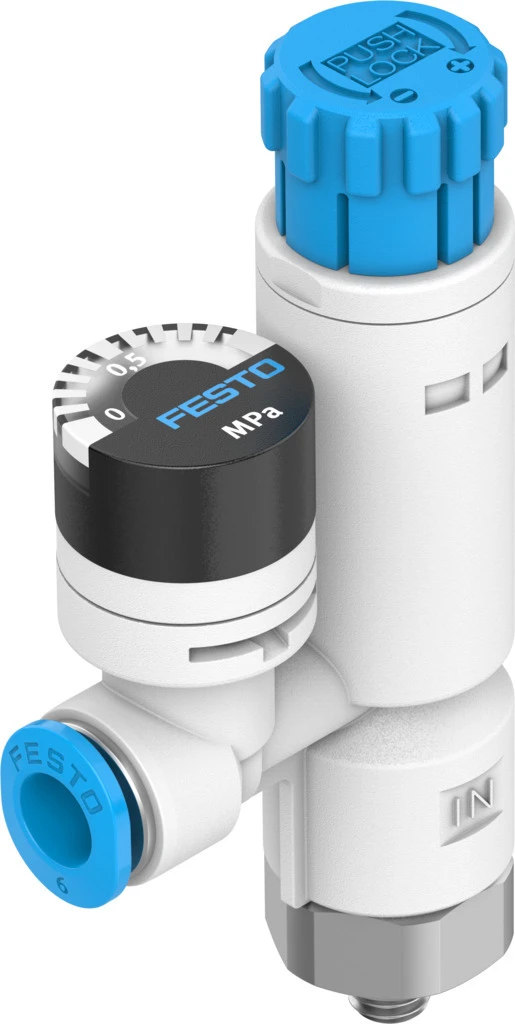

Pressure regulator, VRPA-LM-M5-Q6
SKU: 8086008
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure regulator, metric VRPA
• Controller function Output pressure constant, With secondary venting, With return flow function
• Pneumatic connection, port 1 M5
• Pneumatic connection, port 2 QS-6
• Type of mounting Screw-in
• Standard nominal flow rate (standardised to DIN 1343) 90 l/min
• Ambient temperature 0 °C ... 60 °C
• Material housing PBT
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Mounting position optional
• Type of actuation Manual
• Type of seal on screwed plug Sealing ring
• Adjustment component Rotary knob with detent
• Symbol 00991558
• Rotatability 360°/no continuous swivelling permissible
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Pressure regulation range 0.1 MPa ... 0.8 MPa
• Pressure regulation range 1 bar ... 8 bar
Buy currently uses Select Automation shop pricing and checkout.
Pressure regulator, metric VRPA
• Attractive, compact, strong: our classic in a new design!
• With VRPA you can quite simply reduce the pressure.
• The VRPA can be installed directly between 2 hoses, inline, or also directly on the valve terminal. e.g. to save energy when the full network power is not required.
• Regulates the operating pressure independently of the fluctuating inlet pressure
• With secondary exhaust and with return flow function
• Piston regulator with through pressure supply
• Greater energy efficiency thanks to movement-specific pressure adjustment
• Directly actuated
• Available with pressure gauge
• Connections: push-in connector at both ends, thread/push-in connector
• Sustainable operation thanks to reduced pressure level
