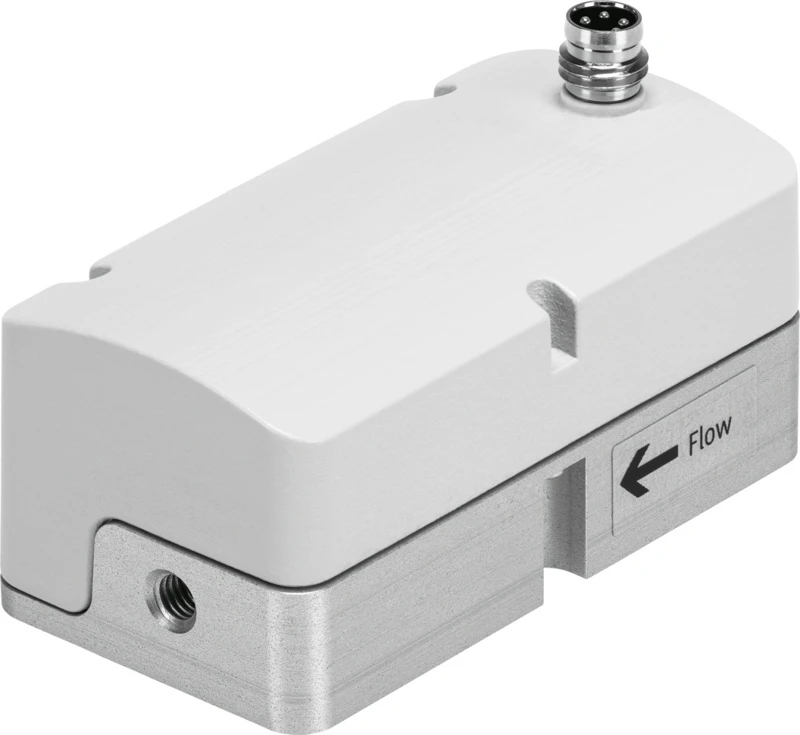

Proportional flow control valve, VEMD-L-6-14-20-D21-M5-1-R1-V4
SKU: 8086472
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mass flow controller VEMD
• Flow rate control range 0 l/min ... 20 l/min
• Flow direction Non-reversible
• Operating pressure 0 MPa ... 0.25 MPa
• Operating pressure 0 bar ... 2.5 bar
• Overload pressure 0.6 MPa
• Overload pressure 6 bar
• Overload pressure 87 psi
• Burst pressure 1 MPa
• Burst pressure 10 bar
• Burst pressure 145 psi
• Accuracy of flow rate ± (4% o.m.v. + 1.25% FS)
• Repetition accuracy in ± %FS 1 %FS
• Valve function 2-way proportional flow control valve
• Max. current consumption 40 mA
• Electrical connection 4-pin - M8x1 A-encoded to EN 61076-2-104 - Plugs
Buy currently uses Select Automation shop pricing and checkout.
Mass flow controller VEMD
• The dynamic mass flow controller VEMD operates extremely quietly thanks to the proportional valves.
• The integrated electronics with sensor detect, regulate and proportionally dose the flow of air, oxygen, nitrogen, argon and CO2.
• Mass flow controller (MFC) with thermal flow rate sensor and integrated control electronics
• Dynamic regulation with short response time
• Operating medium: air, oxygen, nitrogen, argon, CO2
• The current flow rate value is available via the interface
• Ideal for many applications where inert gases or oxygen need to be controlled
• Sustainable operation thanks to efficient control
