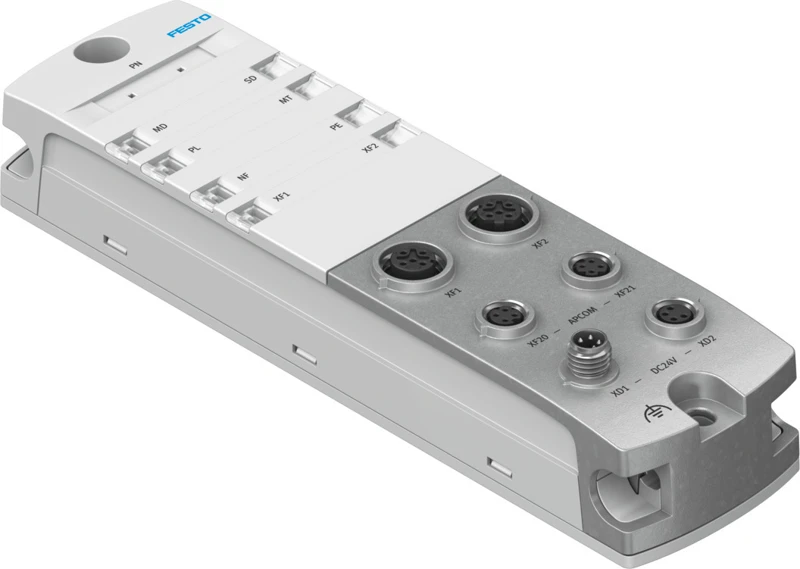

PROFINET Interface, CPX-AP-I-PN-M12
SKU: 8086607
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Automation system CPX-AP-I
• PROFINET Interface
• Dimensions (W x L x H) 45 x 170 x 35 mm
• Type of mounting On H-rail via accessories, With through-hole
• Max. number of modules 80
• Product weight 186 g
• Ambient temperature -20 °C ... 50 °C
• Storage temperature -40 °C ... 70 °C
• Relative air humidity 5 - 95%, Non-condensing
• Degree of protection IP65, IP67
• Note on degree of protection Unused connections sealed
• Corrosion resistance class CRC 1 - Low corrosion stress
• Max. cable length 50 m system communication
• Note on max. cable length Power supply according to nominal voltage
• LABS (PWIS) conformity VDMA24364-B2-L
Buy currently uses Select Automation shop pricing and checkout.
For automation system CPX-AP-I
• With the new I/O system CPX-AP-I in IP65/IP67, powerful I/O modules and existing valve terminal connections can be integrated into the most important host systems, including IO-Link master.
• Decentralised and lightweight I/O system in IP65/IP67
• Highly flexible remote IO system with maximum performance
• Can be expanded and easily combined with CPX-AP-I and CPX-AP-A to form an integrated system
• Seamless connectivity along with advanced diagnostics option increase the machine availability and productivity
• Easy to integrate into the controller of your choice: PROFINET, EtherCAT®, EtherNet/IP, ModbusTCP
• Module for IO-Link® available
• Real-time capability, transmission rate of 200 Mbit full duplex
• Powerful remote I/O system that flexibly links 80 modules at a data rate of 200 Mbaud in real-time
• Cable lengths of up to 50 m between every module enable vast system dimensions
