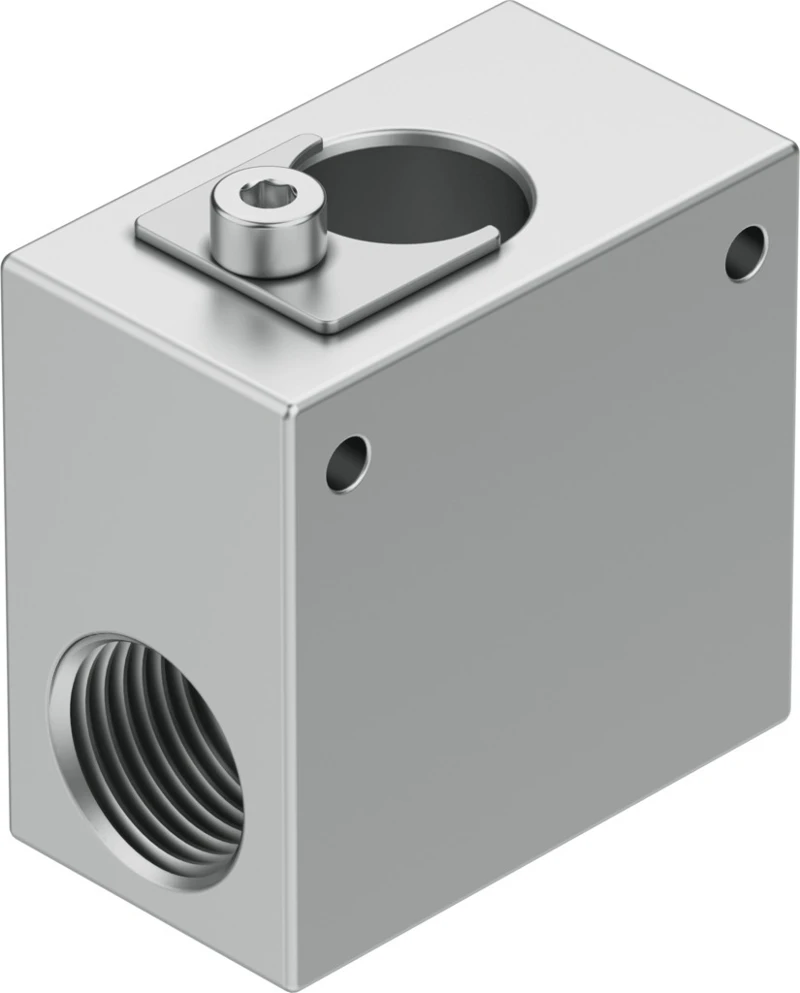

Manifold block, VABS-P4-20S-G38

Specifications • Proportional directional control valves VPWS • Accessories, Manifold block • Construction width 25 mm • Mounting position optional • Design Connection direction at side • Max. number of valve positions 1 • Operating pressure 0 bar ... 7 bar • Operating medium Inert gases, Air • Note on operating and pilot medium Lubricated operation not possible, Maximum particle size 10 µm • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Pneumatic connection, port 1 G3/8 • Material sub-base Anodised wrought aluminium alloy
