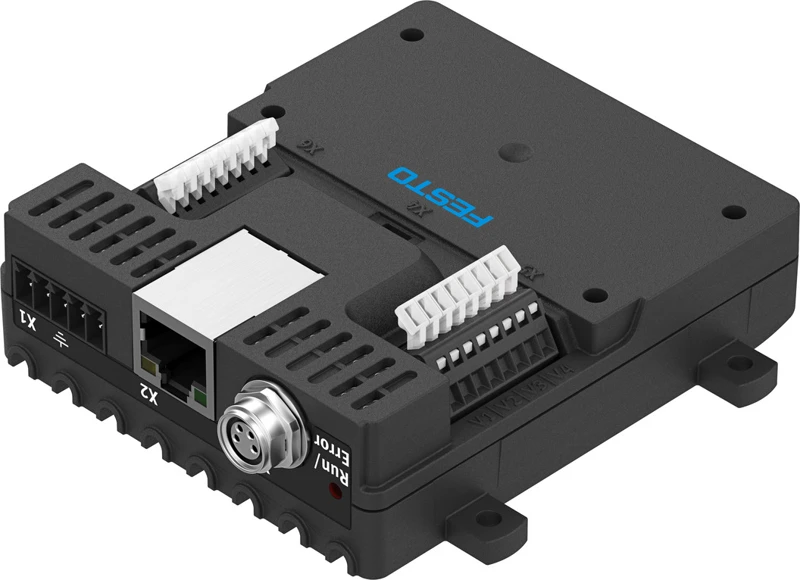

Valve control module, VAEM-V-S8EPRS2
SKU: 8088772
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Dispense head VTOI
• Accessories, Valve control module
• Dimensions (W x L x H) 92 mm x 100 mm x 28 mm
• Diagnostics via LED Error, Run
• Diagnostics via bus Wire break at the output, Short circuit/overload at output, Parameterisation error, Undervoltage in load supply
• Mounting position optional
• Parameterisation Parameter setting per output
• Reverse polarity protection For operating voltage
• Operator controls DIP switch for Baud rate
• Internal current consumption, operating voltage 36 mA
• Trigger level Level 14 V ... 24 V
• Load voltage range DC 8 V ... 24 V
• Max. number of outputs 8
• Inrush current, per output 20 mA ... 1000 mA
• Holding current, per output 20 mA ... 400 mA
• Communication interface, protocol ASCII via RS232
• Communication interface, connection technology M8x1, A-coded according to EN 61076-2-104
• Nominal operating voltage DC 24 V
Buy currently uses Select Automation shop pricing and checkout.
Valve control module VAEM
• Easily control valves with holding current reduction. For a more precise switching behaviour of the valves, up to 8 channels can be individually parameterised on the VAEM.
• The holding current reduction saves energy and at the same time minimises heat input.
• Electronic actuation with integrated, adjustable holding current reduction for controlling up to 8 solenoid valves
• Parameterisation, diagnostics and control via graphical user interface (GUI), Ethernet and RS232 interface as well as external 24 V trigger input
• Graphical user interface (GUI) for the extremely easy operation and clear visualisation
• Very fast valve control with a temporal resolution of 0.2 ms
• Easy setting of a calibration factor between the individual channels (opening times per valve)
