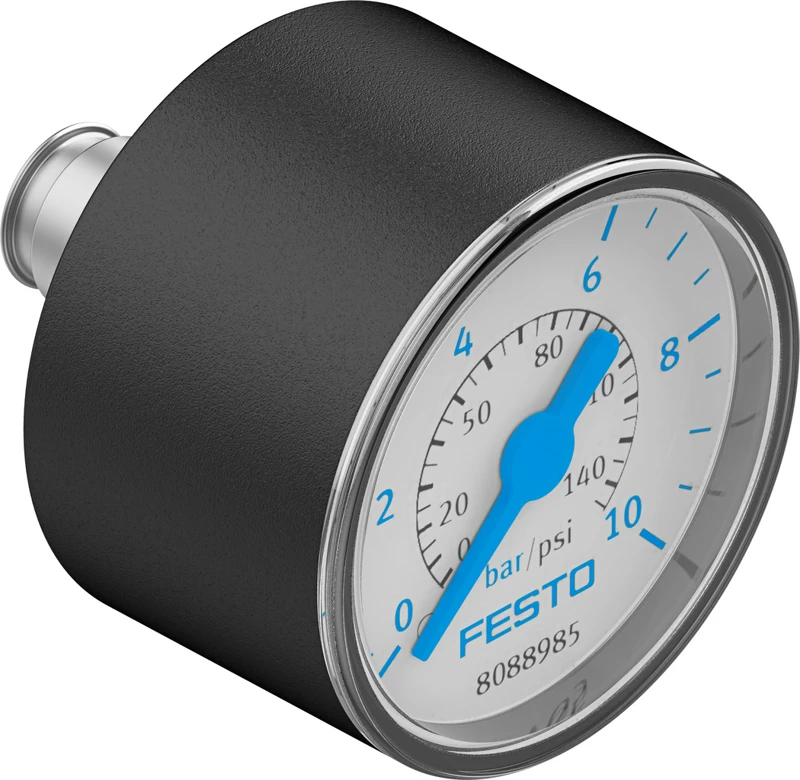

Pressure gauge, PAGN-26-10-G18S
SKU: 8088985
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure gauge PAGN
• Indicating range 0 bar ... 10 bar
• Symbol 00991463
• Nominal size of pressure gauge 26
• Design Bourdon tube pressure gauge
• Type of mounting In-line installation
• Operating medium Inert gases,Neutral fluids
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Operating pressure 0 psi ... 145 psi
• Alternating load factor 0.66
• Measurement accuracy class 4
• Degree of protection IP43
• Storage temperature -5 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Pressure gauge PAGN
• Pressure gauge to DIN EN 837-1 for attaching to a push-in fitting with display range up to 16 bar/230 psi.
• Designs based on EN 837-1
• Display units bar, psi, Mpa
