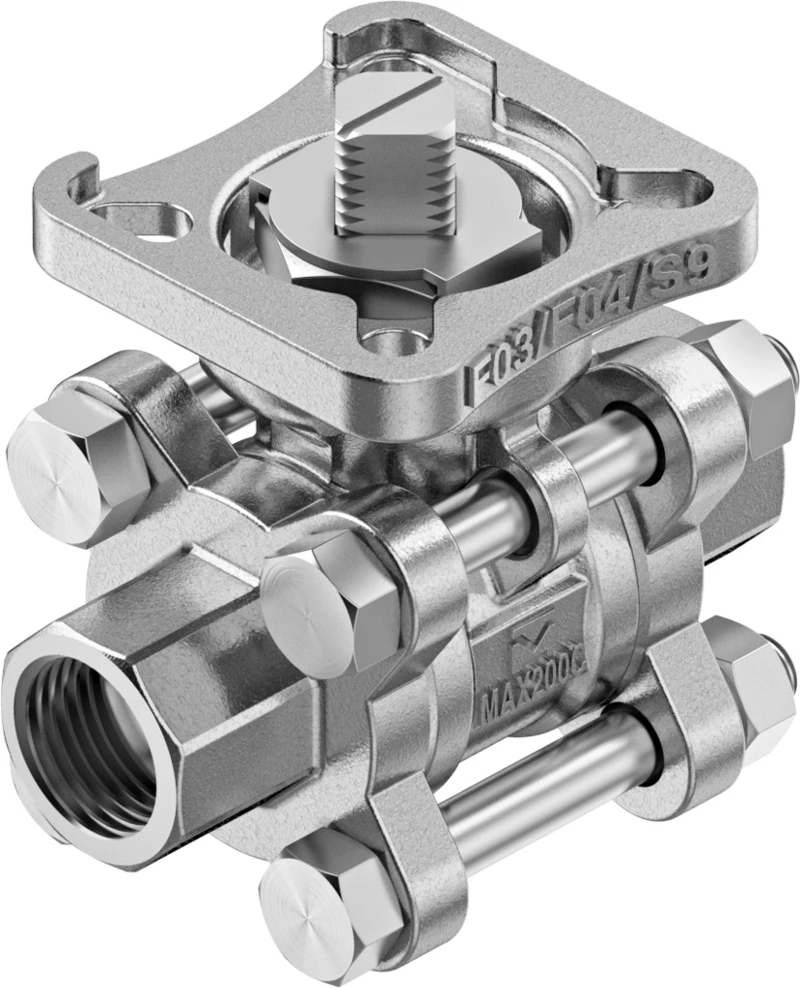

Ball valve, VZBE-1/4-WA-63-T-2-F0304-V15V15
SKU: 8089038
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBE, 2-way, with weld-on end
• Design 2-way ball valve
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Weld-on end according to ASME B16.11
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F03, F04
• Inside diameter 11.6 mm
• Nominal size DN 8
• Valve function 2/2
• Flow direction Reversible
• Flow rate Kv 19 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VZBE
• 2-way, 2-way manual or 3-way: stainless steel ball valve VZBE controls various media, both in process automation and in factory automation.
• 2-way manual, with lockable hand lever
• 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever
• Stainless steel design
• Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11
• Optionally with pre-assembled hand lever
