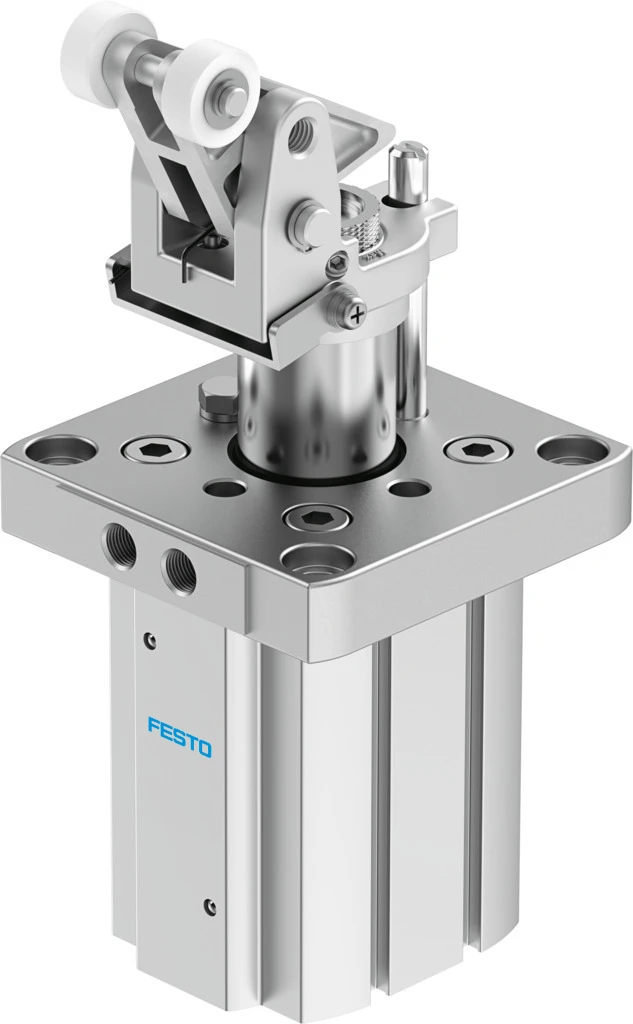

Stopper cylinder, DFST-50-30-D-Y4-A-S-G2
SKU: 8090411
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Stopper cylinders DFST-G2
• Stroke 30 mm
• Piston diameter 50 mm
• Cushioning Elastic cushioning rings/plates at both ends, Shock absorber, adjustable, at front
• Mounting position Vertical
• Mode of operation Double-acting
• Design Piston rod with toggle lever
• Position detection Via proximity switch
• Sensing the toggle lever position Via inductive sensors
• Symbol 00991216
• Protection against torque/guide Guide rod
• Operating pressure 0.2 MPa ... 1 MPa
• Operating pressure 2 bar ... 10 bar
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Impact force 3000 N
Buy currently uses Select Automation shop pricing and checkout.
Stopper cylinder DFST
• With the stopper cylinder DFST you can stop workpieces gently and without vibrations or noise thanks to its cushioned toggle lever mechanism.
• The adjustable working direction makes the DFST very versatile, while its sturdy design allows it to handle impact loads of up to 800 kg.
• Toggle lever design
• Integrated, adjustable shock absorber for smooth and adapted stopping
• Up to 800 kg impact load
• For position sensing on the piston
• Adjustable active direction thanks to rotatable toggle lever set-up (90°, 180°, 270°)
• Lever locking mechanism
• Toggle lever deactivator
• Roller version made of polyamide or steel
