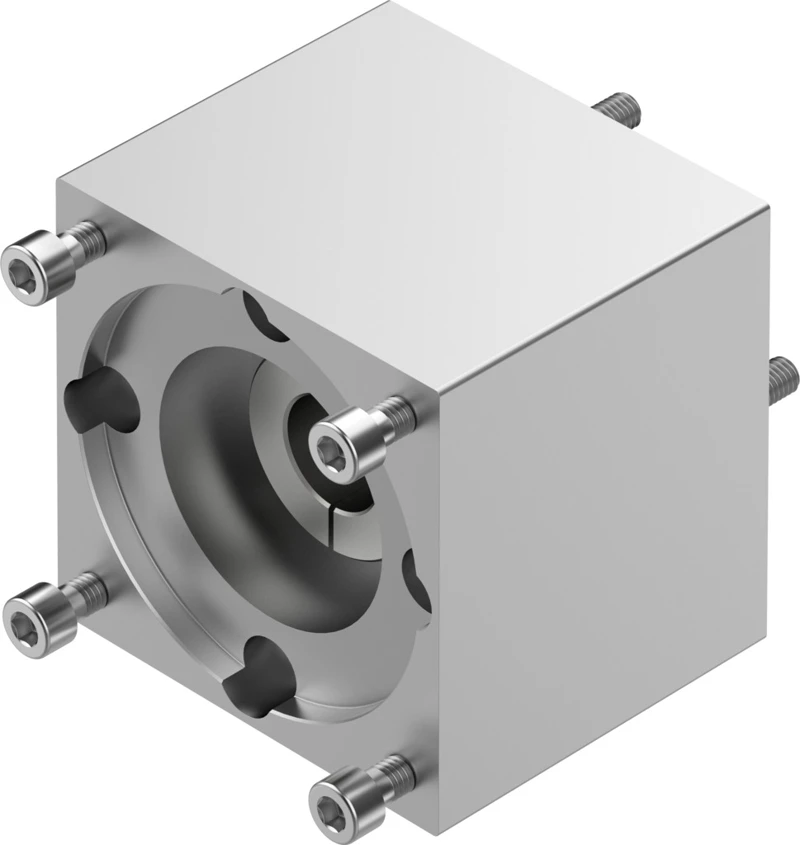

Axial kit, EAMM-A-T46-80PA

Specifications • Axial kits EAMM-A • Permissible axis/motor combinations with ball screw (spindle) axis ELGD-BS-... • Permissible axis/motor combinations with ball screw (spindle) axis ELGT-BS-… • Permissible axis/motor combinations with toothed belt axis ELGC-TB-… • Permissible axis/motor combinations with ball screw (spindle) axis ELGC-BS-… • Nominal length 68.5 mm • Mounting position optional • Max. rotational speed 8000 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 7.65 kgmm² • Transmittable torque 10 Nm • Product weight 917 g • Interface code, actuator T46 • Interface code, motor in 80PA, 80RA • Note on materials RoHS-compliant
