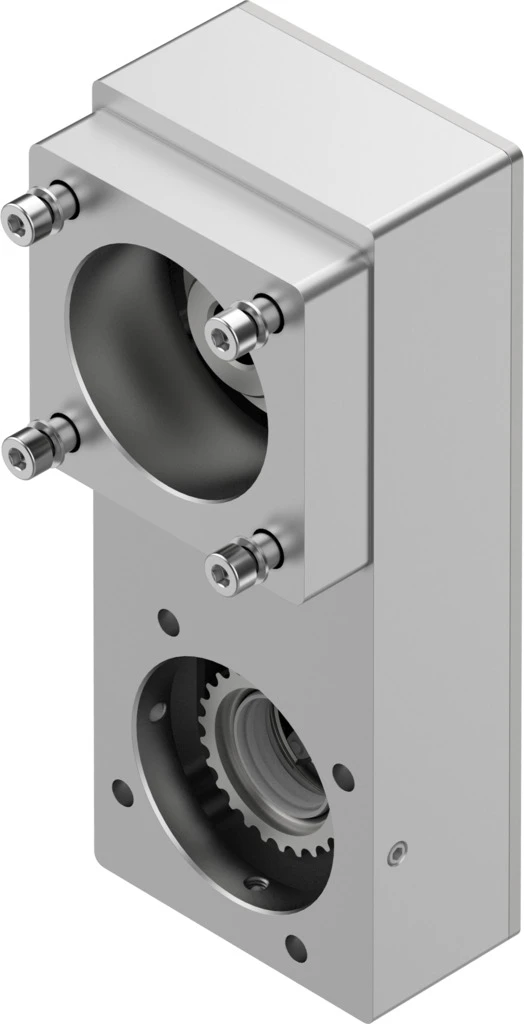

Parallel kit, EAMM-U-45-V32-40R-63

Specifications • Parallel kits EAMM-U-...-V/T • Permissible axis/motor combinations with electric cylinder EPCC • Permissible axis/motor combinations with mini slide EGSC-BS • Permissible axis/motor combinations with ball screw (spindle) axis ELGC-BS • Size 45 • Centre-to-centre distance 63 mm • Mounting position optional • Gear unit ratio 1:1 • Max. rotational speed 3600 rpm • LABS (PWIS) conformity VDMA24364 zone III • Storage temperature -20 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature 0 °C ... 50 °C • Mass moment of inertia 4.35 kgmm² • Frictional torque independent of load 0.05 Nm • Transmittable torque 1 Nm • Product weight 262 g • Interface code, actuator V32 • Interface code, motor in 40R • Note on materials RoHS-compliant
