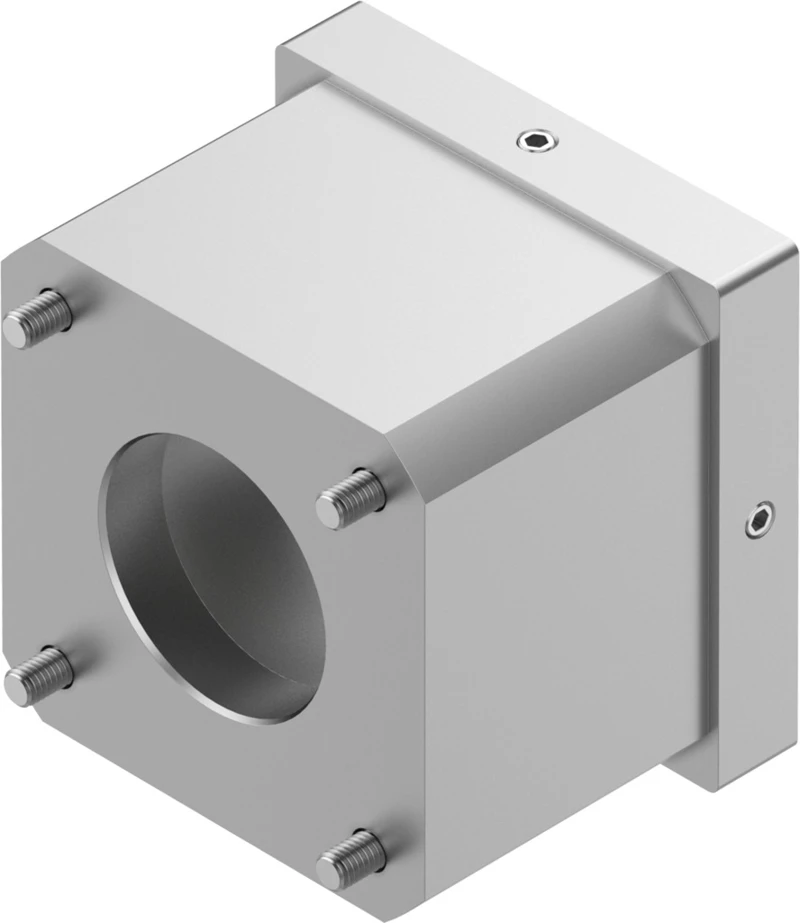

Axial kit, EAMM-A-V32-42AB

Specifications • Axial kits EAMM-A • Permissible axis/motor combinations with electric cylinder EPCC • Permissible axis/motor combinations with toothed belt axis ELGC-TB-… • Permissible axis/motor combinations with ball screw (spindle) axis ELGC-BS-… • Permissible axis/motor combinations with mini slide EGSC • Nominal length 36 mm • Mounting position optional • Max. rotational speed 10000 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 0.19 kgmm² • Transmittable torque 1 Nm • Product weight 130 g • Interface code, actuator V32 • Interface code, motor in 42AB • Note on materials RoHS-compliant
