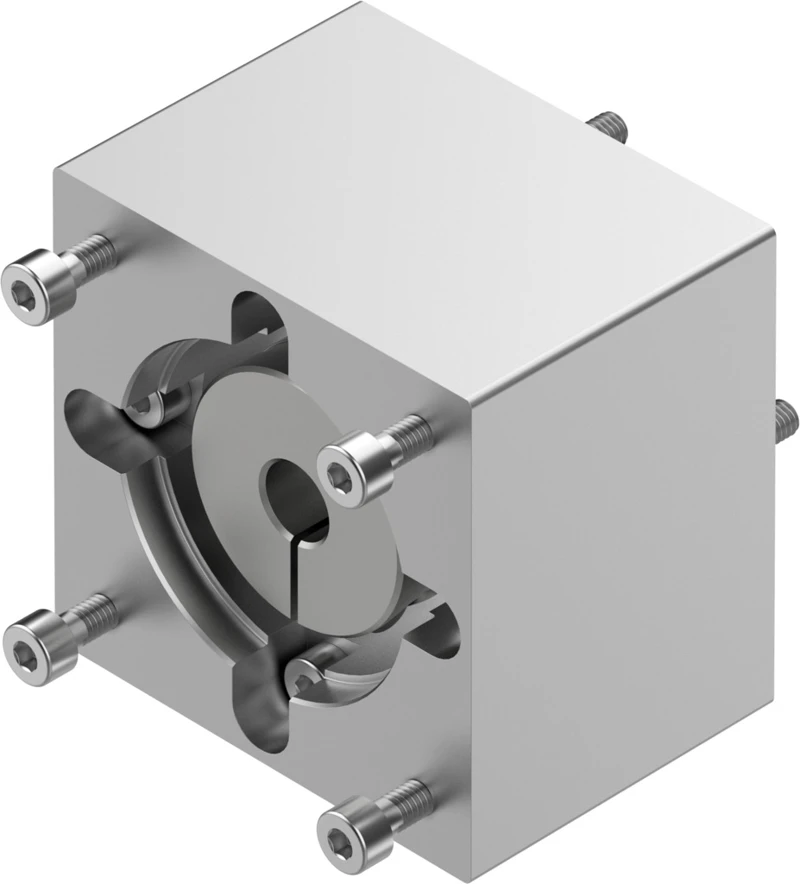

Axial kit, EAMM-A-T42-58AA

Specifications • Axial kits EAMM-A • Permissible axis/motor combinations with electric cylinder EPCC • Permissible axis/motor combinations with ball screw (spindle) axis ELGD-BS-… • Permissible axis/motor combinations with ball screw (spindle) axis ELGC-BS-… • Permissible axis/motor combinations with mini slide EGSC • Nominal length 43 mm • Mounting position optional • Max. rotational speed 8000 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 3.2 kgmm² • Transmittable torque 8.5 Nm • Product weight 310 g • Interface code, actuator T42 • Interface code, motor in 58AA • Note on materials RoHS-compliant
