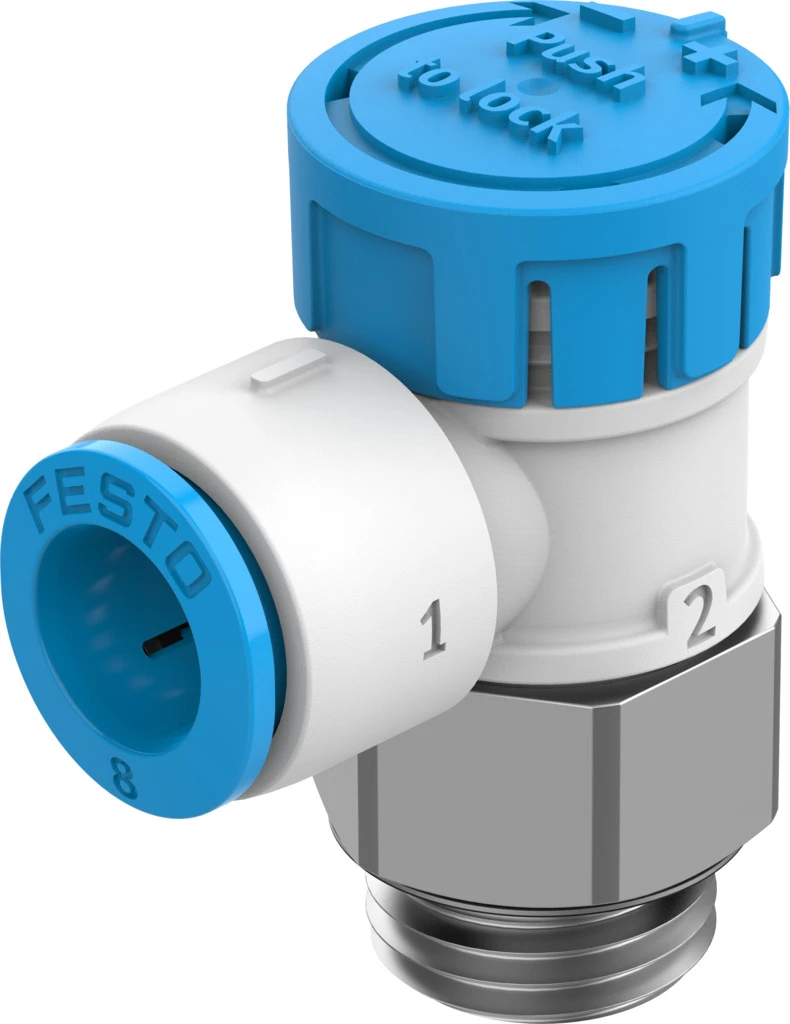

One-way flow control valve, VFOE-LE-T-G14-Q8-P50

Specifications • One-way flow control valve VFOE • Valve function Exhaust air one-way flow control function • Pneumatic connection, port 1 QS-8 • Pneumatic connection, port 2 G1/4 • Type of actuation Manual • Adjustment component Rotary knob with detent • Type of mounting Screw-in • Standard nominal flow rate in flow control direction 500 l/min • Standard nominal flow rate in blocked direction 370 l/min ... 500 l/min • Ambient temperature -10 °C ... 60 °C • Material housing PBT • Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • Mounting position optional • Symbol 00991452 • Width across flats 16 mm
